Forecasting Air Passenger Traffic#

A Comparative Study on the International Airport Passengers Dataset

Introduction#

In this Jupyter Notebook, we delve into the realm of time series forecasting using the “International Airport Passengers” dataset. This dataset is a quintessential example of a time series featuring distinct trends and seasonal variations, making it ideal for benchmarking different forecasting models.

Objective#

Our primary objective is to assess the performance of various time series forecasting models in predicting future trends in passenger traffic. Through this comparison, we aim to discern the capabilities and limitations of each model, particularly in terms of handling complex patterns inherent in time series data.

Models in Comparison#

We will be evaluating four distinct models:

  • ARIMA (AutoRegressive Integrated Moving Average): A classic statistical model renowned for capturing linear trends in time series data.

  • LSTM (Long Short-Term Memory): A type of recurrent neural network that excels in recognizing long-term dependencies, ideal for non-linear data sequences.

  • LSTM with Attention Mechanism: Enhancing the standard LSTM’s capabilities by incorporating an attention mechanism for better context understanding.

  • CNN (Convolutional Neural Network): Typically used in image processing, but also effective in identifying local patterns in sequential data.

  • Transformer: A recent innovation that employs attention mechanisms to focus on different parts of input data, proving effective in sequence-to-sequence modeling.

Approach#

In our study, we employ two distinct prediction methodologies to evaluate the performance of our models. These methodologies help us understand how well each model can forecast future values under different scenarios.

  • Non-Rolling Prediction: This approach involves using the trained model to predict future time steps all at once, based solely on the historical data. It is a straightforward prediction method where the model uses the known data to forecast the next steps in the sequence. Non-Rolling Prediction is often used to evaluate the model’s performance when complete future data is available for prediction.

  • Rolling Prediction: Contrary to Non-Rolling Prediction, Rolling Prediction simulates a more realistic scenario where each future time step is predicted one at a time, and each prediction is fed back as input for the next prediction. This method mimics a real-world situation where each prediction depends on the previous ones, and the model does not have access to future data. It is particularly useful for evaluating how well a model adapts to new data and its effectiveness in a continuously updating environment.

Importing Libraries and Configuration#

import pandas as pd
import numpy as np
import random
import os
from statsmodels.tsa.arima.model import ARIMA
import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Dense, LSTM, Dropout, LayerNormalization, Conv1D, MaxPooling1D, Flatten, MultiHeadAttention, Input, GlobalAveragePooling1D, Concatenate, Attention
from tensorflow.keras.optimizers import Adam
from tensorflow.keras.regularizers import l2
from tensorflow.keras.callbacks import ReduceLROnPlateau, EarlyStopping
from sklearn.preprocessing import MinMaxScaler
from sklearn.metrics import mean_squared_error
import matplotlib.pyplot as plt
%matplotlib inline
from matplotlib.pylab import rcParams

2025-04-08 14:10:12.877212: I tensorflow/core/platform/cpu_feature_guard.cc:182] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: AVX2 FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.

Settings#

rcParams["figure.figsize"] = 15, 6
rcParams["axes.titlesize"] = "xx-large"
rcParams["axes.titleweight"] = "bold"
rcParams["legend.loc"] = "upper left"


# Setting random seeds for reproducibility
seed_value = 42
os.environ["PYTHONHASHSEED"] = str(seed_value)
random.seed(seed_value)
np.random.seed(seed_value)
tf.random.set_seed(seed_value)

l2_reg=0.001

Loading and Handling Time Series in Pandas#

data = pd.read_csv(
    "https://raw.githubusercontent.com/GVSU-CIS635/Datasets/master/airline-passengers.csv",
    index_col="Month"
)
data.index = pd.to_datetime(data.index, format="%Y-%m")
data.head()
Passengers
Month
1949-01-01 112
1949-02-01 118
1949-03-01 132
1949-04-01 129
1949-05-01 121
passengers = data["Passengers"]

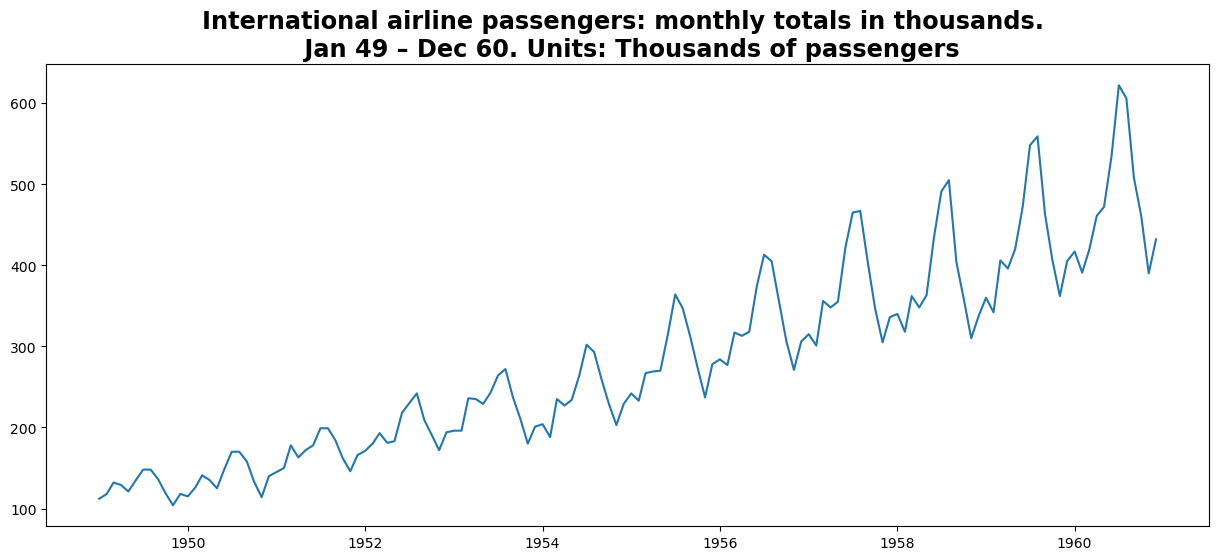

plt.title(
    "International airline passengers: monthly totals in thousands. \n Jan 49 – Dec 60. Units: Thousands of passengers"
)
plt.plot(passengers)

[<matplotlib.lines.Line2D at 0x7f3c6090a990>]
../_images/54a97671132f2258307dde86d4b53efffd7fbb2acb181eec82430da53699260d.png

ARIMA#

Splitting Data into Training and Test Sets for ARIMA#

data_train, data_test = (
    data[:-24],
    data[-24:],
)
print(f"Training {len(data_train)}, Test {len(data_test)}")
print(type(data_train))

Training 120, Test 24
<class 'pandas.core.frame.DataFrame'>

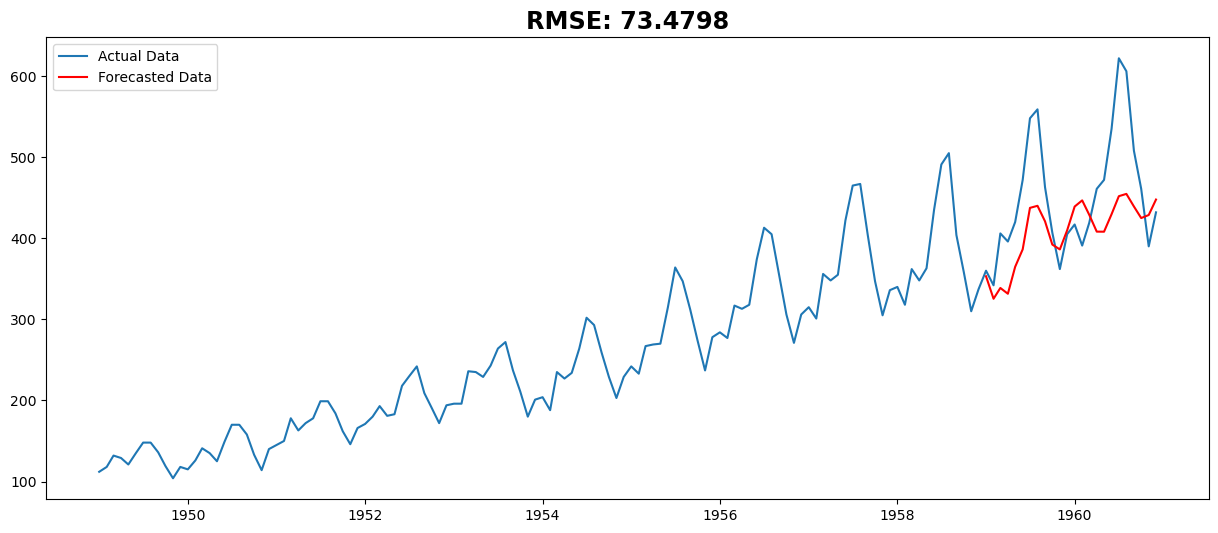

ARIMA Model Experimentation#

model = ARIMA(data_train, order=(2, 2, 11))
results_ARIMA = model.fit()
yhat = results_ARIMA.forecast(steps=24)
plt.plot(passengers, label="Actual Data")
plt.plot(yhat, color="red", label="Forecasted Data")

# Calculating the RMSE (Root Mean Squared Error)
rmse = mean_squared_error(data_test["Passengers"], yhat, squared=False)
plt.title(f"RMSE: {rmse:.4f}")
plt.legend()
plt.show()

/opt/conda/lib/python3.11/site-packages/statsmodels/tsa/base/tsa_model.py:473: ValueWarning: No frequency information was provided, so inferred frequency MS will be used.
  self._init_dates(dates, freq)
/opt/conda/lib/python3.11/site-packages/statsmodels/tsa/base/tsa_model.py:473: ValueWarning: No frequency information was provided, so inferred frequency MS will be used.
  self._init_dates(dates, freq)
/opt/conda/lib/python3.11/site-packages/statsmodels/tsa/base/tsa_model.py:473: ValueWarning: No frequency information was provided, so inferred frequency MS will be used.
  self._init_dates(dates, freq)
/opt/conda/lib/python3.11/site-packages/statsmodels/tsa/statespace/sarimax.py:978: UserWarning: Non-invertible starting MA parameters found. Using zeros as starting parameters.
  warn('Non-invertible starting MA parameters found.'

/opt/conda/lib/python3.11/site-packages/statsmodels/base/model.py:607: ConvergenceWarning: Maximum Likelihood optimization failed to converge. Check mle_retvals
  warnings.warn("Maximum Likelihood optimization failed to "
../_images/4536b2bfbd4cbefd0c97e0ba3f790aeec849ab6ce0bef33ec1d3596dd94faf61.png

Neural Networks#

Data Normalization for Neural Network Experiments#

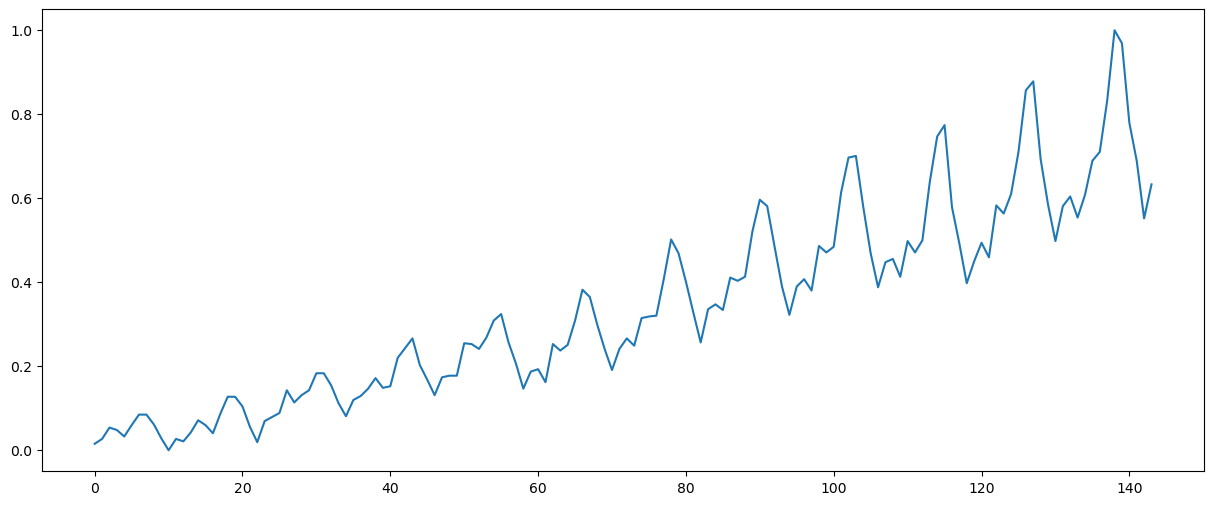

scaler = MinMaxScaler(feature_range=(0, 1))
scaled_data = scaler.fit_transform(data)
print(scaled_data.shape)
plt.plot(scaled_data)

(144, 1)

[<matplotlib.lines.Line2D at 0x7f3c60663d90>]
../_images/f0989515260f5fdb92254aaefb981573d66c2711d89f1ddf9b9cc5ec08892da7.png

Preparing Dataset for Neural Network Models#

def create_dataset(sequence, look_back=1):
    X, y = [], []
    for i in range(len(sequence) - look_back):
        end_ix = i + look_back
        # gather input and output parts of the pattern
        seq_x, seq_y = sequence[i:end_ix], sequence[end_ix]
        X.append(seq_x)
        y.append(seq_y)
    return np.array(X), np.array(y)

# Using past 12 time steps to predict the next step
look_back = 12

X, y = create_dataset(scaled_data, look_back)
print("(samples, timesteps, features): " + str(X.shape))

(samples, timesteps, features): (132, 12, 1)

Splitting Data for Neural Network Models#

X_train, y_train = X[:-36], y[:-36]
X_valid, y_valid = X[-36:-24], y[-36:-24]
X_test, y_test = X[-24:], y[-24:]
print(f"training samples shape: {X_train.shape}")
print(f"validation samples shape: {X_valid.shape}")
print(f"test samples shape: {X_test.shape}")

training samples shape: (96, 12, 1)
validation samples shape: (12, 12, 1)
test samples shape: (24, 12, 1)

LSTM Model Building and Training#

lstm = Sequential()
lstm.add(
    LSTM(200, activation="relu", return_sequences=False, input_shape=(look_back, 1), kernel_regularizer=l2(l2_reg)))
lstm.add(LayerNormalization())
lstm.add(Dropout(0.2))
lstm.add(Dense(50, activation='relu', kernel_regularizer=l2(l2_reg)))
lstm.add(Dense(1, kernel_regularizer=l2(l2_reg)))

def network_training(model, model_name):
    learning_rate = 0.001

    # Configure the optimizer with the specified learning rate
    adam_optimizer = Adam(learning_rate=learning_rate)
    model.compile(loss="mean_squared_error", optimizer=adam_optimizer)

    # Early Stopping Callback
    early_stopping = EarlyStopping(
        monitor="val_loss", patience=20, verbose=1, mode="auto"
    )

    # Reduce learning rate when the validation loss plateaus
    reduce_lr = ReduceLROnPlateau(
        monitor="val_loss", factor=0.1, patience=10, verbose=1, min_lr=0.000000001
    )

    history = model.fit(
        X_train,
        y_train,
        validation_data=(X_valid, y_valid),
        epochs=500,
        verbose=1,
        callbacks=[early_stopping, reduce_lr],
    )

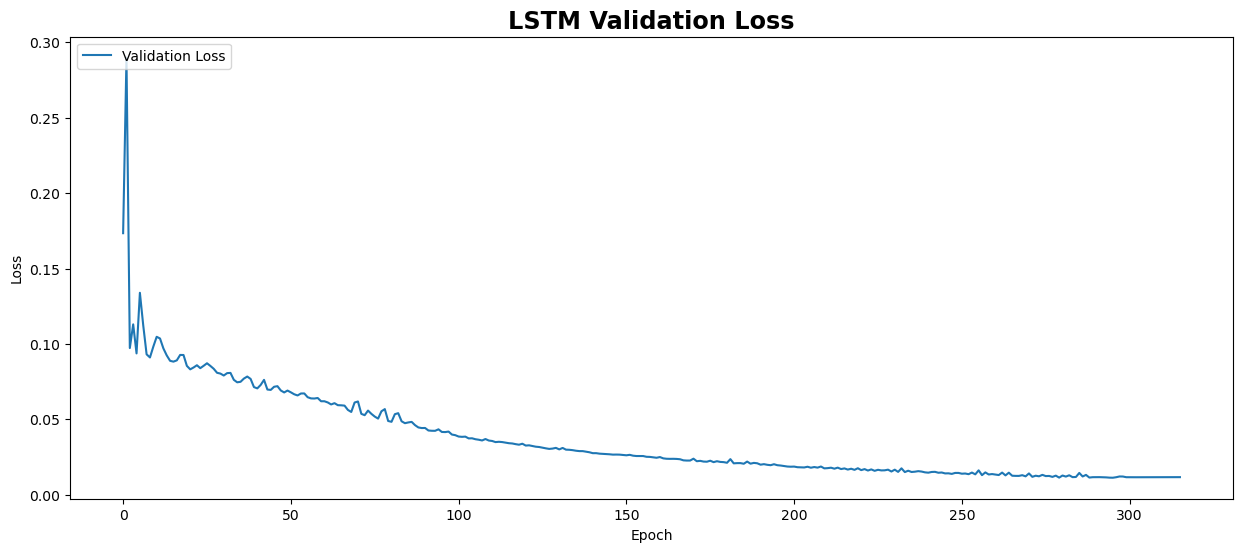

    # Plotting the evaluation loss
    plt.plot(history.history["val_loss"], label="Validation Loss")
    plt.title(f"{model_name} Validation Loss")
    plt.ylabel("Loss")
    plt.xlabel("Epoch")
    plt.legend()
    plt.show()

network_training(lstm, "LSTM")

Epoch 1/500

1/3 [=========>....................] - ETA: 1s - loss: 0.0937


3/3 [==============================] - 1s 114ms/step - loss: 0.2277 - val_loss: 0.1734 - lr: 0.0010

Epoch 2/500

1/3 [=========>....................] - ETA: 0s - loss: 0.1132


3/3 [==============================] - 0s 26ms/step - loss: 0.1660 - val_loss: 0.2898 - lr: 0.0010

Epoch 3/500

1/3 [=========>....................] - ETA: 0s - loss: 0.1469


3/3 [==============================] - 0s 24ms/step - loss: 0.1245 - val_loss: 0.0973 - lr: 0.0010

Epoch 4/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0921


3/3 [==============================] - 0s 24ms/step - loss: 0.1007 - val_loss: 0.1130 - lr: 0.0010

Epoch 5/500

1/3 [=========>....................] - ETA: 0s - loss: 0.1104


3/3 [==============================] - 0s 24ms/step - loss: 0.1062 - val_loss: 0.0937 - lr: 0.0010

Epoch 6/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0969


3/3 [==============================] - 0s 39ms/step - loss: 0.0932 - val_loss: 0.1339 - lr: 0.0010

Epoch 7/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0935


3/3 [==============================] - 0s 40ms/step - loss: 0.0948 - val_loss: 0.1122 - lr: 0.0010

Epoch 8/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0864


3/3 [==============================] - 0s 29ms/step - loss: 0.0877 - val_loss: 0.0931 - lr: 0.0010

Epoch 9/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0874


3/3 [==============================] - 0s 27ms/step - loss: 0.0893 - val_loss: 0.0910 - lr: 0.0010

Epoch 10/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0941


3/3 [==============================] - 0s 24ms/step - loss: 0.0871 - val_loss: 0.0982 - lr: 0.0010

Epoch 11/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0815


3/3 [==============================] - 0s 24ms/step - loss: 0.0832 - val_loss: 0.1047 - lr: 0.0010

Epoch 12/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0839


3/3 [==============================] - 0s 24ms/step - loss: 0.0848 - val_loss: 0.1036 - lr: 0.0010

Epoch 13/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0806


3/3 [==============================] - 0s 26ms/step - loss: 0.0807 - val_loss: 0.0971 - lr: 0.0010

Epoch 14/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0786


3/3 [==============================] - 0s 26ms/step - loss: 0.0798 - val_loss: 0.0924 - lr: 0.0010

Epoch 15/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0808


3/3 [==============================] - 0s 28ms/step - loss: 0.0795 - val_loss: 0.0888 - lr: 0.0010

Epoch 16/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0799


3/3 [==============================] - 0s 29ms/step - loss: 0.0786 - val_loss: 0.0883 - lr: 0.0010

Epoch 17/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0802


3/3 [==============================] - 0s 25ms/step - loss: 0.0785 - val_loss: 0.0891 - lr: 0.0010

Epoch 18/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0798


3/3 [==============================] - 0s 25ms/step - loss: 0.0779 - val_loss: 0.0927 - lr: 0.0010

Epoch 19/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0735


3/3 [==============================] - 0s 24ms/step - loss: 0.0771 - val_loss: 0.0927 - lr: 0.0010

Epoch 20/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0784


3/3 [==============================] - 0s 24ms/step - loss: 0.0777 - val_loss: 0.0855 - lr: 0.0010

Epoch 21/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0781


3/3 [==============================] - 0s 29ms/step - loss: 0.0760 - val_loss: 0.0832 - lr: 0.0010

Epoch 22/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0745


3/3 [==============================] - 0s 34ms/step - loss: 0.0765 - val_loss: 0.0844 - lr: 0.0010

Epoch 23/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0749


3/3 [==============================] - 0s 35ms/step - loss: 0.0745 - val_loss: 0.0859 - lr: 0.0010

Epoch 24/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0734


3/3 [==============================] - 0s 31ms/step - loss: 0.0743 - val_loss: 0.0839 - lr: 0.0010

Epoch 25/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0777


3/3 [==============================] - 0s 37ms/step - loss: 0.0748 - val_loss: 0.0855 - lr: 0.0010

Epoch 26/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0713


3/3 [==============================] - 0s 28ms/step - loss: 0.0724 - val_loss: 0.0872 - lr: 0.0010

Epoch 27/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0709


3/3 [==============================] - 0s 27ms/step - loss: 0.0702 - val_loss: 0.0855 - lr: 0.0010

Epoch 28/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0702


3/3 [==============================] - 0s 26ms/step - loss: 0.0706 - val_loss: 0.0835 - lr: 0.0010

Epoch 29/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0700


3/3 [==============================] - 0s 27ms/step - loss: 0.0692 - val_loss: 0.0809 - lr: 0.0010

Epoch 30/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0694


3/3 [==============================] - 0s 25ms/step - loss: 0.0698 - val_loss: 0.0804 - lr: 0.0010

Epoch 31/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0704


3/3 [==============================] - 0s 28ms/step - loss: 0.0697 - val_loss: 0.0791 - lr: 0.0010

Epoch 32/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0681


3/3 [==============================] - 0s 34ms/step - loss: 0.0687 - val_loss: 0.0806 - lr: 0.0010

Epoch 33/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0673


3/3 [==============================] - 0s 33ms/step - loss: 0.0673 - val_loss: 0.0808 - lr: 0.0010

Epoch 34/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0677


3/3 [==============================] - 0s 30ms/step - loss: 0.0667 - val_loss: 0.0762 - lr: 0.0010

Epoch 35/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0670


3/3 [==============================] - 0s 28ms/step - loss: 0.0675 - val_loss: 0.0746 - lr: 0.0010

Epoch 36/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0662


3/3 [==============================] - 0s 34ms/step - loss: 0.0667 - val_loss: 0.0749 - lr: 0.0010

Epoch 37/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0667


3/3 [==============================] - 0s 30ms/step - loss: 0.0665 - val_loss: 0.0770 - lr: 0.0010

Epoch 38/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0661


3/3 [==============================] - 0s 28ms/step - loss: 0.0657 - val_loss: 0.0784 - lr: 0.0010

Epoch 39/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0689


3/3 [==============================] - 0s 28ms/step - loss: 0.0673 - val_loss: 0.0768 - lr: 0.0010

Epoch 40/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0672


3/3 [==============================] - 0s 29ms/step - loss: 0.0666 - val_loss: 0.0714 - lr: 0.0010

Epoch 41/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0670


3/3 [==============================] - 0s 32ms/step - loss: 0.0644 - val_loss: 0.0705 - lr: 0.0010

Epoch 42/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0625


3/3 [==============================] - 0s 57ms/step - loss: 0.0637 - val_loss: 0.0728 - lr: 0.0010

Epoch 43/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0628


3/3 [==============================] - ETA: 0s - loss: 0.0638


3/3 [==============================] - 0s 37ms/step - loss: 0.0638 - val_loss: 0.0762 - lr: 0.0010

Epoch 44/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0650


3/3 [==============================] - 0s 38ms/step - loss: 0.0620 - val_loss: 0.0698 - lr: 0.0010

Epoch 45/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0631


3/3 [==============================] - 0s 26ms/step - loss: 0.0616 - val_loss: 0.0695 - lr: 0.0010

Epoch 46/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0608


3/3 [==============================] - 0s 26ms/step - loss: 0.0612 - val_loss: 0.0716 - lr: 0.0010

Epoch 47/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0605


3/3 [==============================] - 0s 24ms/step - loss: 0.0615 - val_loss: 0.0720 - lr: 0.0010

Epoch 48/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0587


3/3 [==============================] - 0s 25ms/step - loss: 0.0600 - val_loss: 0.0692 - lr: 0.0010

Epoch 49/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0601


3/3 [==============================] - 0s 28ms/step - loss: 0.0602 - val_loss: 0.0678 - lr: 0.0010

Epoch 50/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0596


3/3 [==============================] - 0s 29ms/step - loss: 0.0584 - val_loss: 0.0691 - lr: 0.0010

Epoch 51/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0564


3/3 [==============================] - 0s 30ms/step - loss: 0.0587 - val_loss: 0.0679 - lr: 0.0010

Epoch 52/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0578


3/3 [==============================] - 0s 30ms/step - loss: 0.0578 - val_loss: 0.0666 - lr: 0.0010

Epoch 53/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0578


3/3 [==============================] - 0s 27ms/step - loss: 0.0587 - val_loss: 0.0658 - lr: 0.0010

Epoch 54/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0567


3/3 [==============================] - 0s 25ms/step - loss: 0.0571 - val_loss: 0.0672 - lr: 0.0010

Epoch 55/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0553


3/3 [==============================] - 0s 23ms/step - loss: 0.0573 - val_loss: 0.0672 - lr: 0.0010

Epoch 56/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0536


3/3 [==============================] - 0s 25ms/step - loss: 0.0565 - val_loss: 0.0647 - lr: 0.0010

Epoch 57/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0578


3/3 [==============================] - 0s 23ms/step - loss: 0.0552 - val_loss: 0.0639 - lr: 0.0010

Epoch 58/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0560


3/3 [==============================] - 0s 24ms/step - loss: 0.0550 - val_loss: 0.0638 - lr: 0.0010

Epoch 59/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0539


3/3 [==============================] - 0s 24ms/step - loss: 0.0546 - val_loss: 0.0642 - lr: 0.0010

Epoch 60/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0550


3/3 [==============================] - 0s 26ms/step - loss: 0.0540 - val_loss: 0.0620 - lr: 0.0010

Epoch 61/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0531


3/3 [==============================] - 0s 33ms/step - loss: 0.0529 - val_loss: 0.0620 - lr: 0.0010

Epoch 62/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0545


3/3 [==============================] - 0s 27ms/step - loss: 0.0529 - val_loss: 0.0612 - lr: 0.0010

Epoch 63/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0538


3/3 [==============================] - 0s 25ms/step - loss: 0.0528 - val_loss: 0.0599 - lr: 0.0010

Epoch 64/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0523


3/3 [==============================] - 0s 25ms/step - loss: 0.0520 - val_loss: 0.0607 - lr: 0.0010

Epoch 65/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0524


3/3 [==============================] - 0s 40ms/step - loss: 0.0532 - val_loss: 0.0594 - lr: 0.0010

Epoch 66/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0514


3/3 [==============================] - 0s 33ms/step - loss: 0.0520 - val_loss: 0.0593 - lr: 0.0010

Epoch 67/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0508


3/3 [==============================] - 0s 27ms/step - loss: 0.0499 - val_loss: 0.0591 - lr: 0.0010

Epoch 68/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0511


3/3 [==============================] - 0s 28ms/step - loss: 0.0500 - val_loss: 0.0562 - lr: 0.0010

Epoch 69/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0497


3/3 [==============================] - 0s 25ms/step - loss: 0.0497 - val_loss: 0.0549 - lr: 0.0010

Epoch 70/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0512


3/3 [==============================] - 0s 25ms/step - loss: 0.0515 - val_loss: 0.0612 - lr: 0.0010

Epoch 71/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0518


3/3 [==============================] - 0s 23ms/step - loss: 0.0503 - val_loss: 0.0619 - lr: 0.0010

Epoch 72/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0512


3/3 [==============================] - 0s 24ms/step - loss: 0.0494 - val_loss: 0.0537 - lr: 0.0010

Epoch 73/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0510


3/3 [==============================] - 0s 23ms/step - loss: 0.0498 - val_loss: 0.0528 - lr: 0.0010

Epoch 74/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0466


3/3 [==============================] - 0s 24ms/step - loss: 0.0472 - val_loss: 0.0558 - lr: 0.0010

Epoch 75/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0476


3/3 [==============================] - 0s 29ms/step - loss: 0.0482 - val_loss: 0.0536 - lr: 0.0010

Epoch 76/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0455


3/3 [==============================] - 0s 27ms/step - loss: 0.0474 - val_loss: 0.0519 - lr: 0.0010

Epoch 77/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0457


3/3 [==============================] - 0s 30ms/step - loss: 0.0465 - val_loss: 0.0505 - lr: 0.0010

Epoch 78/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0468


3/3 [==============================] - 0s 25ms/step - loss: 0.0462 - val_loss: 0.0554 - lr: 0.0010

Epoch 79/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0475


3/3 [==============================] - 0s 24ms/step - loss: 0.0468 - val_loss: 0.0568 - lr: 0.0010

Epoch 80/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0437


3/3 [==============================] - 0s 23ms/step - loss: 0.0454 - val_loss: 0.0489 - lr: 0.0010

Epoch 81/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0444


3/3 [==============================] - 0s 22ms/step - loss: 0.0462 - val_loss: 0.0484 - lr: 0.0010

Epoch 82/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0445


3/3 [==============================] - 0s 22ms/step - loss: 0.0442 - val_loss: 0.0534 - lr: 0.0010

Epoch 83/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0442


3/3 [==============================] - 0s 23ms/step - loss: 0.0447 - val_loss: 0.0541 - lr: 0.0010

Epoch 84/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0440


3/3 [==============================] - 0s 23ms/step - loss: 0.0438 - val_loss: 0.0487 - lr: 0.0010

Epoch 85/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0435


3/3 [==============================] - 0s 23ms/step - loss: 0.0432 - val_loss: 0.0475 - lr: 0.0010

Epoch 86/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0428


3/3 [==============================] - 0s 22ms/step - loss: 0.0427 - val_loss: 0.0480 - lr: 0.0010

Epoch 87/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0413


3/3 [==============================] - 0s 23ms/step - loss: 0.0430 - val_loss: 0.0483 - lr: 0.0010

Epoch 88/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0423


3/3 [==============================] - 0s 22ms/step - loss: 0.0436 - val_loss: 0.0462 - lr: 0.0010

Epoch 89/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0414


3/3 [==============================] - 0s 22ms/step - loss: 0.0416 - val_loss: 0.0446 - lr: 0.0010

Epoch 90/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0420


3/3 [==============================] - 0s 23ms/step - loss: 0.0418 - val_loss: 0.0442 - lr: 0.0010

Epoch 91/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0416


3/3 [==============================] - 0s 23ms/step - loss: 0.0421 - val_loss: 0.0443 - lr: 0.0010

Epoch 92/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0419


3/3 [==============================] - 0s 22ms/step - loss: 0.0410 - val_loss: 0.0426 - lr: 0.0010

Epoch 93/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0415


3/3 [==============================] - 0s 22ms/step - loss: 0.0408 - val_loss: 0.0424 - lr: 0.0010

Epoch 94/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0419


3/3 [==============================] - 0s 22ms/step - loss: 0.0407 - val_loss: 0.0424 - lr: 0.0010

Epoch 95/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0390


3/3 [==============================] - 0s 22ms/step - loss: 0.0395 - val_loss: 0.0434 - lr: 0.0010

Epoch 96/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0384


3/3 [==============================] - 0s 22ms/step - loss: 0.0393 - val_loss: 0.0416 - lr: 0.0010

Epoch 97/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0399


3/3 [==============================] - 0s 26ms/step - loss: 0.0394 - val_loss: 0.0416 - lr: 0.0010

Epoch 98/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0389


3/3 [==============================] - 0s 24ms/step - loss: 0.0384 - val_loss: 0.0419 - lr: 0.0010

Epoch 99/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0397


3/3 [==============================] - 0s 39ms/step - loss: 0.0390 - val_loss: 0.0399 - lr: 0.0010

Epoch 100/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0373


3/3 [==============================] - 0s 31ms/step - loss: 0.0382 - val_loss: 0.0395 - lr: 0.0010

Epoch 101/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0371


3/3 [==============================] - 0s 30ms/step - loss: 0.0373 - val_loss: 0.0386 - lr: 0.0010

Epoch 102/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0368


3/3 [==============================] - 0s 29ms/step - loss: 0.0368 - val_loss: 0.0384 - lr: 0.0010

Epoch 103/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0361


3/3 [==============================] - 0s 28ms/step - loss: 0.0370 - val_loss: 0.0385 - lr: 0.0010

Epoch 104/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0378


3/3 [==============================] - 0s 27ms/step - loss: 0.0371 - val_loss: 0.0374 - lr: 0.0010

Epoch 105/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0369


3/3 [==============================] - 0s 30ms/step - loss: 0.0366 - val_loss: 0.0374 - lr: 0.0010

Epoch 106/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0362


3/3 [==============================] - 0s 27ms/step - loss: 0.0363 - val_loss: 0.0368 - lr: 0.0010

Epoch 107/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0365


3/3 [==============================] - 0s 26ms/step - loss: 0.0358 - val_loss: 0.0365 - lr: 0.0010

Epoch 108/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0355


3/3 [==============================] - 0s 27ms/step - loss: 0.0361 - val_loss: 0.0360 - lr: 0.0010

Epoch 109/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0345


3/3 [==============================] - 0s 27ms/step - loss: 0.0352 - val_loss: 0.0370 - lr: 0.0010

Epoch 110/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0356


3/3 [==============================] - 0s 29ms/step - loss: 0.0354 - val_loss: 0.0360 - lr: 0.0010

Epoch 111/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0342


3/3 [==============================] - 0s 30ms/step - loss: 0.0343 - val_loss: 0.0357 - lr: 0.0010

Epoch 112/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0353


3/3 [==============================] - 0s 31ms/step - loss: 0.0348 - val_loss: 0.0349 - lr: 0.0010

Epoch 113/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0336


3/3 [==============================] - 0s 40ms/step - loss: 0.0343 - val_loss: 0.0351 - lr: 0.0010

Epoch 114/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0335


3/3 [==============================] - 0s 45ms/step - loss: 0.0339 - val_loss: 0.0349 - lr: 0.0010

Epoch 115/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0328


3/3 [==============================] - 0s 52ms/step - loss: 0.0332 - val_loss: 0.0346 - lr: 0.0010

Epoch 116/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0334


3/3 [==============================] - 0s 64ms/step - loss: 0.0338 - val_loss: 0.0342 - lr: 0.0010

Epoch 117/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0328


3/3 [==============================] - ETA: 0s - loss: 0.0328


3/3 [==============================] - 0s 44ms/step - loss: 0.0328 - val_loss: 0.0340 - lr: 0.0010

Epoch 118/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0316


3/3 [==============================] - 0s 35ms/step - loss: 0.0329 - val_loss: 0.0336 - lr: 0.0010

Epoch 119/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0327


3/3 [==============================] - 0s 31ms/step - loss: 0.0326 - val_loss: 0.0332 - lr: 0.0010

Epoch 120/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0316


3/3 [==============================] - 0s 30ms/step - loss: 0.0319 - val_loss: 0.0338 - lr: 0.0010

Epoch 121/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0322


3/3 [==============================] - 0s 28ms/step - loss: 0.0322 - val_loss: 0.0326 - lr: 0.0010

Epoch 122/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0315


3/3 [==============================] - 0s 25ms/step - loss: 0.0315 - val_loss: 0.0328 - lr: 0.0010

Epoch 123/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0311


3/3 [==============================] - 0s 25ms/step - loss: 0.0311 - val_loss: 0.0323 - lr: 0.0010

Epoch 124/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0304


3/3 [==============================] - 0s 24ms/step - loss: 0.0306 - val_loss: 0.0319 - lr: 0.0010

Epoch 125/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0316


3/3 [==============================] - 0s 25ms/step - loss: 0.0310 - val_loss: 0.0317 - lr: 0.0010

Epoch 126/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0300


3/3 [==============================] - 0s 25ms/step - loss: 0.0309 - val_loss: 0.0312 - lr: 0.0010

Epoch 127/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0310


3/3 [==============================] - 0s 25ms/step - loss: 0.0305 - val_loss: 0.0308 - lr: 0.0010

Epoch 128/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0296


3/3 [==============================] - 0s 27ms/step - loss: 0.0300 - val_loss: 0.0304 - lr: 0.0010

Epoch 129/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0306


3/3 [==============================] - 0s 30ms/step - loss: 0.0301 - val_loss: 0.0306 - lr: 0.0010

Epoch 130/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0322


3/3 [==============================] - 0s 36ms/step - loss: 0.0307 - val_loss: 0.0311 - lr: 0.0010

Epoch 131/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0298


3/3 [==============================] - 0s 30ms/step - loss: 0.0296 - val_loss: 0.0301 - lr: 0.0010

Epoch 132/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0308


3/3 [==============================] - 0s 29ms/step - loss: 0.0300 - val_loss: 0.0311 - lr: 0.0010

Epoch 133/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0292


3/3 [==============================] - 0s 27ms/step - loss: 0.0289 - val_loss: 0.0299 - lr: 0.0010

Epoch 134/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0285


3/3 [==============================] - 0s 24ms/step - loss: 0.0287 - val_loss: 0.0298 - lr: 0.0010

Epoch 135/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0287


3/3 [==============================] - 0s 24ms/step - loss: 0.0289 - val_loss: 0.0296 - lr: 0.0010

Epoch 136/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0284


3/3 [==============================] - 0s 25ms/step - loss: 0.0284 - val_loss: 0.0292 - lr: 0.0010

Epoch 137/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0281


3/3 [==============================] - 0s 24ms/step - loss: 0.0282 - val_loss: 0.0289 - lr: 0.0010

Epoch 138/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0277


3/3 [==============================] - 0s 24ms/step - loss: 0.0281 - val_loss: 0.0289 - lr: 0.0010

Epoch 139/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0288


3/3 [==============================] - 0s 22ms/step - loss: 0.0280 - val_loss: 0.0285 - lr: 0.0010

Epoch 140/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0275


3/3 [==============================] - 0s 26ms/step - loss: 0.0273 - val_loss: 0.0282 - lr: 0.0010

Epoch 141/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0275


3/3 [==============================] - 0s 35ms/step - loss: 0.0275 - val_loss: 0.0276 - lr: 0.0010

Epoch 142/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0271


3/3 [==============================] - 0s 31ms/step - loss: 0.0270 - val_loss: 0.0276 - lr: 0.0010

Epoch 143/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0269


3/3 [==============================] - 0s 30ms/step - loss: 0.0265 - val_loss: 0.0273 - lr: 0.0010

Epoch 144/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0261


3/3 [==============================] - 0s 25ms/step - loss: 0.0266 - val_loss: 0.0271 - lr: 0.0010

Epoch 145/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0264


3/3 [==============================] - 0s 25ms/step - loss: 0.0267 - val_loss: 0.0269 - lr: 0.0010

Epoch 146/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0263


3/3 [==============================] - 0s 26ms/step - loss: 0.0262 - val_loss: 0.0268 - lr: 0.0010

Epoch 147/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0257


3/3 [==============================] - 0s 24ms/step - loss: 0.0263 - val_loss: 0.0266 - lr: 0.0010

Epoch 148/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0262


3/3 [==============================] - 0s 30ms/step - loss: 0.0258 - val_loss: 0.0267 - lr: 0.0010

Epoch 149/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0255


3/3 [==============================] - 0s 31ms/step - loss: 0.0257 - val_loss: 0.0266 - lr: 0.0010

Epoch 150/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0257


3/3 [==============================] - 0s 28ms/step - loss: 0.0253 - val_loss: 0.0264 - lr: 0.0010

Epoch 151/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0252


3/3 [==============================] - 0s 25ms/step - loss: 0.0252 - val_loss: 0.0262 - lr: 0.0010

Epoch 152/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0257


3/3 [==============================] - 0s 26ms/step - loss: 0.0250 - val_loss: 0.0265 - lr: 0.0010

Epoch 153/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0253


3/3 [==============================] - 0s 26ms/step - loss: 0.0254 - val_loss: 0.0259 - lr: 0.0010

Epoch 154/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0246


3/3 [==============================] - 0s 23ms/step - loss: 0.0251 - val_loss: 0.0257 - lr: 0.0010

Epoch 155/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0243


3/3 [==============================] - 0s 23ms/step - loss: 0.0248 - val_loss: 0.0257 - lr: 0.0010

Epoch 156/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0249


3/3 [==============================] - 0s 23ms/step - loss: 0.0246 - val_loss: 0.0257 - lr: 0.0010

Epoch 157/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0250


3/3 [==============================] - 0s 24ms/step - loss: 0.0243 - val_loss: 0.0252 - lr: 0.0010

Epoch 158/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0238


3/3 [==============================] - 0s 23ms/step - loss: 0.0238 - val_loss: 0.0251 - lr: 0.0010

Epoch 159/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0241


3/3 [==============================] - 0s 25ms/step - loss: 0.0240 - val_loss: 0.0248 - lr: 0.0010

Epoch 160/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0242


3/3 [==============================] - 0s 27ms/step - loss: 0.0239 - val_loss: 0.0245 - lr: 0.0010

Epoch 161/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0238


3/3 [==============================] - 0s 29ms/step - loss: 0.0240 - val_loss: 0.0250 - lr: 0.0010

Epoch 162/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0237


3/3 [==============================] - 0s 33ms/step - loss: 0.0236 - val_loss: 0.0241 - lr: 0.0010

Epoch 163/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0233


3/3 [==============================] - 0s 30ms/step - loss: 0.0231 - val_loss: 0.0239 - lr: 0.0010

Epoch 164/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0237


3/3 [==============================] - 0s 32ms/step - loss: 0.0231 - val_loss: 0.0238 - lr: 0.0010

Epoch 165/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0228


3/3 [==============================] - 0s 33ms/step - loss: 0.0229 - val_loss: 0.0238 - lr: 0.0010

Epoch 166/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0231


3/3 [==============================] - 0s 28ms/step - loss: 0.0229 - val_loss: 0.0238 - lr: 0.0010

Epoch 167/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0221


3/3 [==============================] - 0s 26ms/step - loss: 0.0225 - val_loss: 0.0235 - lr: 0.0010

Epoch 168/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0221


3/3 [==============================] - 0s 25ms/step - loss: 0.0222 - val_loss: 0.0228 - lr: 0.0010

Epoch 169/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0224


3/3 [==============================] - 0s 25ms/step - loss: 0.0221 - val_loss: 0.0227 - lr: 0.0010

Epoch 170/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0227


3/3 [==============================] - 0s 23ms/step - loss: 0.0221 - val_loss: 0.0227 - lr: 0.0010

Epoch 171/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0224


3/3 [==============================] - 0s 23ms/step - loss: 0.0221 - val_loss: 0.0239 - lr: 0.0010

Epoch 172/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0219


3/3 [==============================] - 0s 24ms/step - loss: 0.0219 - val_loss: 0.0222 - lr: 0.0010

Epoch 173/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0216


3/3 [==============================] - 0s 25ms/step - loss: 0.0218 - val_loss: 0.0225 - lr: 0.0010

Epoch 174/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0211


3/3 [==============================] - 0s 25ms/step - loss: 0.0212 - val_loss: 0.0220 - lr: 0.0010

Epoch 175/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0213


3/3 [==============================] - 0s 25ms/step - loss: 0.0214 - val_loss: 0.0219 - lr: 0.0010

Epoch 176/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0210


3/3 [==============================] - 0s 23ms/step - loss: 0.0215 - val_loss: 0.0226 - lr: 0.0010

Epoch 177/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0211


3/3 [==============================] - 0s 25ms/step - loss: 0.0209 - val_loss: 0.0216 - lr: 0.0010

Epoch 178/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0212


3/3 [==============================] - 0s 32ms/step - loss: 0.0212 - val_loss: 0.0222 - lr: 0.0010

Epoch 179/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0211


3/3 [==============================] - 0s 32ms/step - loss: 0.0208 - val_loss: 0.0218 - lr: 0.0010

Epoch 180/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0212


3/3 [==============================] - 0s 26ms/step - loss: 0.0209 - val_loss: 0.0216 - lr: 0.0010

Epoch 181/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0205


3/3 [==============================] - 0s 27ms/step - loss: 0.0204 - val_loss: 0.0212 - lr: 0.0010

Epoch 182/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0205


3/3 [==============================] - 0s 30ms/step - loss: 0.0208 - val_loss: 0.0236 - lr: 0.0010

Epoch 183/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0210


3/3 [==============================] - 0s 27ms/step - loss: 0.0208 - val_loss: 0.0208 - lr: 0.0010

Epoch 184/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0203


3/3 [==============================] - 0s 28ms/step - loss: 0.0204 - val_loss: 0.0210 - lr: 0.0010

Epoch 185/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0197


3/3 [==============================] - 0s 31ms/step - loss: 0.0202 - val_loss: 0.0210 - lr: 0.0010

Epoch 186/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0201


3/3 [==============================] - 0s 32ms/step - loss: 0.0201 - val_loss: 0.0206 - lr: 0.0010

Epoch 187/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0200


3/3 [==============================] - 0s 30ms/step - loss: 0.0199 - val_loss: 0.0220 - lr: 0.0010

Epoch 188/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0200


3/3 [==============================] - 0s 40ms/step - loss: 0.0196 - val_loss: 0.0206 - lr: 0.0010

Epoch 189/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0197


3/3 [==============================] - 0s 32ms/step - loss: 0.0195 - val_loss: 0.0211 - lr: 0.0010

Epoch 190/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0192


3/3 [==============================] - 0s 29ms/step - loss: 0.0191 - val_loss: 0.0209 - lr: 0.0010

Epoch 191/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0193


3/3 [==============================] - 0s 28ms/step - loss: 0.0191 - val_loss: 0.0199 - lr: 0.0010

Epoch 192/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0186


3/3 [==============================] - 0s 33ms/step - loss: 0.0190 - val_loss: 0.0203 - lr: 0.0010

Epoch 193/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0189


3/3 [==============================] - 0s 35ms/step - loss: 0.0188 - val_loss: 0.0199 - lr: 0.0010

Epoch 194/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0188


3/3 [==============================] - 0s 35ms/step - loss: 0.0187 - val_loss: 0.0196 - lr: 0.0010

Epoch 195/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0194


3/3 [==============================] - 0s 38ms/step - loss: 0.0189 - val_loss: 0.0202 - lr: 0.0010

Epoch 196/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0183


3/3 [==============================] - 0s 30ms/step - loss: 0.0183 - val_loss: 0.0196 - lr: 0.0010

Epoch 197/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0188


3/3 [==============================] - 0s 29ms/step - loss: 0.0187 - val_loss: 0.0194 - lr: 0.0010

Epoch 198/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0183


3/3 [==============================] - 0s 32ms/step - loss: 0.0184 - val_loss: 0.0191 - lr: 0.0010

Epoch 199/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0185


3/3 [==============================] - 0s 30ms/step - loss: 0.0184 - val_loss: 0.0187 - lr: 0.0010

Epoch 200/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0179


3/3 [==============================] - 0s 26ms/step - loss: 0.0180 - val_loss: 0.0186 - lr: 0.0010

Epoch 201/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0178


3/3 [==============================] - 0s 24ms/step - loss: 0.0178 - val_loss: 0.0187 - lr: 0.0010

Epoch 202/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0175


3/3 [==============================] - 0s 25ms/step - loss: 0.0178 - val_loss: 0.0183 - lr: 0.0010

Epoch 203/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0176


3/3 [==============================] - 0s 24ms/step - loss: 0.0179 - val_loss: 0.0182 - lr: 0.0010

Epoch 204/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0172


3/3 [==============================] - 0s 24ms/step - loss: 0.0176 - val_loss: 0.0181 - lr: 0.0010

Epoch 205/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0174


3/3 [==============================] - 0s 26ms/step - loss: 0.0173 - val_loss: 0.0186 - lr: 0.0010

Epoch 206/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0170


3/3 [==============================] - 0s 28ms/step - loss: 0.0172 - val_loss: 0.0179 - lr: 0.0010

Epoch 207/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0174


3/3 [==============================] - 0s 27ms/step - loss: 0.0174 - val_loss: 0.0184 - lr: 0.0010

Epoch 208/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0170


3/3 [==============================] - 0s 25ms/step - loss: 0.0169 - val_loss: 0.0180 - lr: 0.0010

Epoch 209/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0175


3/3 [==============================] - 0s 24ms/step - loss: 0.0172 - val_loss: 0.0187 - lr: 0.0010

Epoch 210/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0170


3/3 [==============================] - 0s 23ms/step - loss: 0.0170 - val_loss: 0.0175 - lr: 0.0010

Epoch 211/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0167


3/3 [==============================] - 0s 25ms/step - loss: 0.0167 - val_loss: 0.0177 - lr: 0.0010

Epoch 212/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0170


3/3 [==============================] - 0s 24ms/step - loss: 0.0167 - val_loss: 0.0179 - lr: 0.0010

Epoch 213/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0164


3/3 [==============================] - 0s 37ms/step - loss: 0.0162 - val_loss: 0.0173 - lr: 0.0010

Epoch 214/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0167


3/3 [==============================] - 0s 33ms/step - loss: 0.0164 - val_loss: 0.0180 - lr: 0.0010

Epoch 215/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0166


3/3 [==============================] - 0s 29ms/step - loss: 0.0163 - val_loss: 0.0170 - lr: 0.0010

Epoch 216/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0163


3/3 [==============================] - 0s 25ms/step - loss: 0.0162 - val_loss: 0.0175 - lr: 0.0010

Epoch 217/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0162


3/3 [==============================] - 0s 26ms/step - loss: 0.0159 - val_loss: 0.0167 - lr: 0.0010

Epoch 218/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0160


3/3 [==============================] - 0s 25ms/step - loss: 0.0158 - val_loss: 0.0173 - lr: 0.0010

Epoch 219/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0162


3/3 [==============================] - 0s 24ms/step - loss: 0.0157 - val_loss: 0.0165 - lr: 0.0010

Epoch 220/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0155


3/3 [==============================] - 0s 24ms/step - loss: 0.0154 - val_loss: 0.0176 - lr: 0.0010

Epoch 221/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0156


3/3 [==============================] - 0s 24ms/step - loss: 0.0154 - val_loss: 0.0163 - lr: 0.0010

Epoch 222/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0157


3/3 [==============================] - 0s 23ms/step - loss: 0.0154 - val_loss: 0.0170 - lr: 0.0010

Epoch 223/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0150


3/3 [==============================] - 0s 23ms/step - loss: 0.0151 - val_loss: 0.0161 - lr: 0.0010

Epoch 224/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0155


3/3 [==============================] - 0s 23ms/step - loss: 0.0153 - val_loss: 0.0168 - lr: 0.0010

Epoch 225/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0154


3/3 [==============================] - 0s 23ms/step - loss: 0.0152 - val_loss: 0.0159 - lr: 0.0010

Epoch 226/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0148


3/3 [==============================] - 0s 23ms/step - loss: 0.0150 - val_loss: 0.0165 - lr: 0.0010

Epoch 227/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0151


3/3 [==============================] - 0s 23ms/step - loss: 0.0149 - val_loss: 0.0161 - lr: 0.0010

Epoch 228/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0144


3/3 [==============================] - 0s 25ms/step - loss: 0.0147 - val_loss: 0.0162 - lr: 0.0010

Epoch 229/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0144


3/3 [==============================] - 0s 27ms/step - loss: 0.0146 - val_loss: 0.0166 - lr: 0.0010

Epoch 230/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0147


3/3 [==============================] - 0s 53ms/step - loss: 0.0148 - val_loss: 0.0154 - lr: 0.0010

Epoch 231/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0146


3/3 [==============================] - 0s 30ms/step - loss: 0.0147 - val_loss: 0.0166 - lr: 0.0010

Epoch 232/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0146


3/3 [==============================] - 0s 32ms/step - loss: 0.0147 - val_loss: 0.0152 - lr: 0.0010

Epoch 233/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0145


3/3 [==============================] - 0s 25ms/step - loss: 0.0147 - val_loss: 0.0175 - lr: 0.0010

Epoch 234/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0144


3/3 [==============================] - 0s 26ms/step - loss: 0.0143 - val_loss: 0.0150 - lr: 0.0010

Epoch 235/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0145


3/3 [==============================] - 0s 24ms/step - loss: 0.0144 - val_loss: 0.0159 - lr: 0.0010

Epoch 236/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0143


3/3 [==============================] - 0s 22ms/step - loss: 0.0143 - val_loss: 0.0151 - lr: 0.0010

Epoch 237/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0139


3/3 [==============================] - 0s 22ms/step - loss: 0.0139 - val_loss: 0.0153 - lr: 0.0010

Epoch 238/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0139


3/3 [==============================] - 0s 23ms/step - loss: 0.0138 - val_loss: 0.0157 - lr: 0.0010

Epoch 239/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0138


3/3 [==============================] - 0s 22ms/step - loss: 0.0138 - val_loss: 0.0154 - lr: 0.0010

Epoch 240/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0135


3/3 [==============================] - 0s 25ms/step - loss: 0.0137 - val_loss: 0.0149 - lr: 0.0010

Epoch 241/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0137


3/3 [==============================] - 0s 26ms/step - loss: 0.0136 - val_loss: 0.0146 - lr: 0.0010

Epoch 242/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0137


3/3 [==============================] - 0s 29ms/step - loss: 0.0135 - val_loss: 0.0151 - lr: 0.0010

Epoch 243/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0136


3/3 [==============================] - 0s 26ms/step - loss: 0.0135 - val_loss: 0.0152 - lr: 0.0010

Epoch 244/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0137


3/3 [==============================] - 0s 27ms/step - loss: 0.0135 - val_loss: 0.0146 - lr: 0.0010

Epoch 245/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0132


3/3 [==============================] - 0s 32ms/step - loss: 0.0132 - val_loss: 0.0148 - lr: 0.0010

Epoch 246/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0129


3/3 [==============================] - 0s 30ms/step - loss: 0.0132 - val_loss: 0.0142 - lr: 0.0010

Epoch 247/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0134


3/3 [==============================] - 0s 28ms/step - loss: 0.0133 - val_loss: 0.0142 - lr: 0.0010

Epoch 248/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0130


3/3 [==============================] - 0s 26ms/step - loss: 0.0132 - val_loss: 0.0138 - lr: 0.0010

Epoch 249/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0127


3/3 [==============================] - 0s 26ms/step - loss: 0.0129 - val_loss: 0.0145 - lr: 0.0010

Epoch 250/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0128


3/3 [==============================] - 0s 26ms/step - loss: 0.0129 - val_loss: 0.0145 - lr: 0.0010

Epoch 251/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0131


3/3 [==============================] - 0s 25ms/step - loss: 0.0130 - val_loss: 0.0140 - lr: 0.0010

Epoch 252/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0129


3/3 [==============================] - 0s 27ms/step - loss: 0.0129 - val_loss: 0.0141 - lr: 0.0010

Epoch 253/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0123


3/3 [==============================] - 0s 25ms/step - loss: 0.0125 - val_loss: 0.0136 - lr: 0.0010

Epoch 254/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0125


3/3 [==============================] - 0s 26ms/step - loss: 0.0124 - val_loss: 0.0147 - lr: 0.0010

Epoch 255/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0126


3/3 [==============================] - 0s 25ms/step - loss: 0.0124 - val_loss: 0.0135 - lr: 0.0010

Epoch 256/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0121


3/3 [==============================] - 0s 25ms/step - loss: 0.0124 - val_loss: 0.0162 - lr: 0.0010

Epoch 257/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0130


3/3 [==============================] - 0s 26ms/step - loss: 0.0125 - val_loss: 0.0130 - lr: 0.0010

Epoch 258/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0135


3/3 [==============================] - 0s 27ms/step - loss: 0.0126 - val_loss: 0.0148 - lr: 0.0010

Epoch 259/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0121


3/3 [==============================] - 0s 29ms/step - loss: 0.0121 - val_loss: 0.0135 - lr: 0.0010

Epoch 260/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0121


3/3 [==============================] - 0s 28ms/step - loss: 0.0120 - val_loss: 0.0137 - lr: 0.0010

Epoch 261/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0117


3/3 [==============================] - 0s 56ms/step - loss: 0.0120 - val_loss: 0.0134 - lr: 0.0010

Epoch 262/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0117


3/3 [==============================] - 0s 48ms/step - loss: 0.0121 - val_loss: 0.0131 - lr: 0.0010

Epoch 263/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0121


3/3 [==============================] - 0s 30ms/step - loss: 0.0118 - val_loss: 0.0147 - lr: 0.0010

Epoch 264/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0121


3/3 [==============================] - 0s 29ms/step - loss: 0.0121 - val_loss: 0.0128 - lr: 0.0010

Epoch 265/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0117


3/3 [==============================] - 0s 27ms/step - loss: 0.0118 - val_loss: 0.0146 - lr: 0.0010

Epoch 266/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0121


3/3 [==============================] - 0s 27ms/step - loss: 0.0118 - val_loss: 0.0126 - lr: 0.0010

Epoch 267/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0117


3/3 [==============================] - 0s 35ms/step - loss: 0.0115 - val_loss: 0.0125 - lr: 0.0010

Epoch 268/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0115


3/3 [==============================] - 0s 25ms/step - loss: 0.0116 - val_loss: 0.0125 - lr: 0.0010

Epoch 269/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0115


3/3 [==============================] - 0s 31ms/step - loss: 0.0115 - val_loss: 0.0130 - lr: 0.0010

Epoch 270/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0114


3/3 [==============================] - 0s 33ms/step - loss: 0.0115 - val_loss: 0.0122 - lr: 0.0010

Epoch 271/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0116


3/3 [==============================] - 0s 34ms/step - loss: 0.0113 - val_loss: 0.0141 - lr: 0.0010

Epoch 272/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0119


3/3 [==============================] - 0s 42ms/step - loss: 0.0114 - val_loss: 0.0119 - lr: 0.0010

Epoch 273/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0114


3/3 [==============================] - 0s 47ms/step - loss: 0.0112 - val_loss: 0.0126 - lr: 0.0010

Epoch 274/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0110


3/3 [==============================] - 0s 34ms/step - loss: 0.0110 - val_loss: 0.0122 - lr: 0.0010

Epoch 275/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0111


3/3 [==============================] - 0s 28ms/step - loss: 0.0111 - val_loss: 0.0132 - lr: 0.0010

Epoch 276/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0109


3/3 [==============================] - 0s 27ms/step - loss: 0.0108 - val_loss: 0.0124 - lr: 0.0010

Epoch 277/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0107


3/3 [==============================] - 0s 26ms/step - loss: 0.0109 - val_loss: 0.0125 - lr: 0.0010

Epoch 278/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0107


3/3 [==============================] - 0s 26ms/step - loss: 0.0109 - val_loss: 0.0119 - lr: 0.0010

Epoch 279/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0107


3/3 [==============================] - 0s 25ms/step - loss: 0.0111 - val_loss: 0.0127 - lr: 0.0010

Epoch 280/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0107


3/3 [==============================] - 0s 25ms/step - loss: 0.0109 - val_loss: 0.0114 - lr: 0.0010

Epoch 281/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0112


3/3 [==============================] - 0s 25ms/step - loss: 0.0108 - val_loss: 0.0128 - lr: 0.0010

Epoch 282/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0107


3/3 [==============================] - 0s 25ms/step - loss: 0.0108 - val_loss: 0.0121 - lr: 0.0010

Epoch 283/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0103


3/3 [==============================] - 0s 26ms/step - loss: 0.0105 - val_loss: 0.0129 - lr: 0.0010

Epoch 284/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0104


3/3 [==============================] - 0s 25ms/step - loss: 0.0105 - val_loss: 0.0117 - lr: 0.0010

Epoch 285/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0105


3/3 [==============================] - 0s 24ms/step - loss: 0.0103 - val_loss: 0.0118 - lr: 0.0010

Epoch 286/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0102


3/3 [==============================] - 0s 27ms/step - loss: 0.0102 - val_loss: 0.0145 - lr: 0.0010

Epoch 287/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0107


3/3 [==============================] - 0s 29ms/step - loss: 0.0105 - val_loss: 0.0121 - lr: 0.0010

Epoch 288/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0104


3/3 [==============================] - 0s 34ms/step - loss: 0.0103 - val_loss: 0.0132 - lr: 0.0010

Epoch 289/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0102


3/3 [==============================] - 0s 32ms/step - loss: 0.0102 - val_loss: 0.0114 - lr: 0.0010

Epoch 290/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0101

Epoch 290: ReduceLROnPlateau reducing learning rate to 0.00010000000474974513.


3/3 [==============================] - 0s 87ms/step - loss: 0.0099 - val_loss: 0.0116 - lr: 0.0010

Epoch 291/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0099


3/3 [==============================] - 0s 39ms/step - loss: 0.0100 - val_loss: 0.0117 - lr: 1.0000e-04

Epoch 292/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0098


3/3 [==============================] - 0s 41ms/step - loss: 0.0099 - val_loss: 0.0117 - lr: 1.0000e-04

Epoch 293/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0099


3/3 [==============================] - 0s 36ms/step - loss: 0.0099 - val_loss: 0.0116 - lr: 1.0000e-04

Epoch 294/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0100


3/3 [==============================] - 0s 37ms/step - loss: 0.0098 - val_loss: 0.0115 - lr: 1.0000e-04

Epoch 295/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0098


3/3 [==============================] - ETA: 0s - loss: 0.0098


3/3 [==============================] - 0s 44ms/step - loss: 0.0098 - val_loss: 0.0113 - lr: 1.0000e-04

Epoch 296/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0101


3/3 [==============================] - 0s 38ms/step - loss: 0.0100 - val_loss: 0.0113 - lr: 1.0000e-04

Epoch 297/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0101


3/3 [==============================] - 0s 41ms/step - loss: 0.0100 - val_loss: 0.0116 - lr: 1.0000e-04

Epoch 298/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0099


3/3 [==============================] - 0s 35ms/step - loss: 0.0099 - val_loss: 0.0121 - lr: 1.0000e-04

Epoch 299/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0099


3/3 [==============================] - 0s 28ms/step - loss: 0.0099 - val_loss: 0.0121 - lr: 1.0000e-04

Epoch 300/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0099

Epoch 300: ReduceLROnPlateau reducing learning rate to 1.0000000474974514e-05.


3/3 [==============================] - 0s 26ms/step - loss: 0.0098 - val_loss: 0.0116 - lr: 1.0000e-04

Epoch 301/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0097


3/3 [==============================] - 0s 27ms/step - loss: 0.0098 - val_loss: 0.0116 - lr: 1.0000e-05

Epoch 302/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0097


3/3 [==============================] - 0s 26ms/step - loss: 0.0099 - val_loss: 0.0116 - lr: 1.0000e-05

Epoch 303/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0100


3/3 [==============================] - 0s 24ms/step - loss: 0.0100 - val_loss: 0.0116 - lr: 1.0000e-05

Epoch 304/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0101


3/3 [==============================] - 0s 23ms/step - loss: 0.0099 - val_loss: 0.0116 - lr: 1.0000e-05

Epoch 305/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0098


3/3 [==============================] - 0s 24ms/step - loss: 0.0100 - val_loss: 0.0116 - lr: 1.0000e-05

Epoch 306/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0099


3/3 [==============================] - 0s 23ms/step - loss: 0.0100 - val_loss: 0.0117 - lr: 1.0000e-05

Epoch 307/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0100


3/3 [==============================] - 0s 24ms/step - loss: 0.0099 - val_loss: 0.0117 - lr: 1.0000e-05

Epoch 308/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0099


3/3 [==============================] - 0s 24ms/step - loss: 0.0097 - val_loss: 0.0117 - lr: 1.0000e-05

Epoch 309/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0097


3/3 [==============================] - 0s 26ms/step - loss: 0.0098 - val_loss: 0.0117 - lr: 1.0000e-05

Epoch 310/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0099

Epoch 310: ReduceLROnPlateau reducing learning rate to 1.0000000656873453e-06.


3/3 [==============================] - 0s 27ms/step - loss: 0.0100 - val_loss: 0.0117 - lr: 1.0000e-05

Epoch 311/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0102


3/3 [==============================] - 0s 27ms/step - loss: 0.0100 - val_loss: 0.0117 - lr: 1.0000e-06

Epoch 312/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0097


3/3 [==============================] - 0s 33ms/step - loss: 0.0098 - val_loss: 0.0117 - lr: 1.0000e-06

Epoch 313/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0099


3/3 [==============================] - 0s 31ms/step - loss: 0.0099 - val_loss: 0.0117 - lr: 1.0000e-06

Epoch 314/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0099


3/3 [==============================] - 0s 68ms/step - loss: 0.0100 - val_loss: 0.0117 - lr: 1.0000e-06

Epoch 315/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0100


3/3 [==============================] - 0s 24ms/step - loss: 0.0098 - val_loss: 0.0117 - lr: 1.0000e-06

Epoch 316/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0095


3/3 [==============================] - 0s 23ms/step - loss: 0.0097 - val_loss: 0.0117 - lr: 1.0000e-06

Epoch 316: early stopping
../_images/3c35e5f4e1faf26a6012ef84169f0ba389c7e8166a55e6e70fdfd5d38c420d55.png

Non-Rolling Prediction#

def non_rolling_prediction(model, scaler):
    yhat = model.predict(X_test)
    yhat = scaler.inverse_transform(yhat)
    plt.plot(data)
    plt.plot(
        pd.DataFrame(yhat, index=data.index[-24:], columns=["Predictions"]), color="red"
    )

    rmse = mean_squared_error(data[-24:].values, yhat, squared=False)
    plt.title(f"RMSE: {rmse:.4f}")

non_rolling_prediction(lstm, scaler)

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 137ms/step
../_images/17839ec92c86747b6f6b0229b7570fa281706524ee83a98c35deda9905d0ce11.png

Rolling Prediction#

def make_rolling_predictions(model, starting_input, steps, scaler):
    """
    Make rolling predictions using the trained model.

    :param model: The trained model.
    :param starting_input: The initial input data (last known data points).
    :param steps: Number of future time steps to predict.
    :param scaler: The scaler used for data normalization.
    :return: Predictions in original scale.
    """
    input_seq = starting_input.copy()
    predictions = []

    for _ in range(steps):
        # Reshape the input to the format the model expects
        reshaped_input = np.reshape(input_seq, (1, len(input_seq), 1))

        # Make a prediction
        prediction = model.predict(reshaped_input)

        # Append the prediction
        predictions.append(prediction[0, 0])

        # Update the input sequence for the next prediction
        input_seq = np.append(input_seq[1:], prediction)

    return scaler.inverse_transform(np.array(predictions).reshape(-1, 1))

def rolling_prediction(model, scaler):
    yhat = make_rolling_predictions(
        model, scaled_data[-24 - look_back : -24], 24, scaler
    )
    plt.plot(data)
    plt.plot(
        pd.DataFrame(yhat, index=data.index[-24:], columns=["Predictions"]), color="red"
    )
    plt.legend()
    rmse = mean_squared_error(data[-24:].values, yhat, squared=False)
    plt.title(f"RMSE: {rmse:.4f}")

    plt.show()

rolling_prediction(lstm, scaler)

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 15ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 15ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 15ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 82ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 17ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 16ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 15ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 17ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 25ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 28ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 17ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 16ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 16ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 15ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 13ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 15ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 13ms/step

No artists with labels found to put in legend.  Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
../_images/55d555931edd0247fdd86ff62e843ffe22214ee7575ca9f275116822500fdf28.png

LSTM with Attention Mechanism: Model Building and Training#

# Model parameters
input_shape = (look_back, 1)
lstm_units = 200
dropout_rate = 0.2

# Define the model
inputs = Input(shape=input_shape)
lstm_out, state_h, state_c = LSTM(lstm_units, return_sequences=True, return_state=True, kernel_regularizer=l2(l2_reg))(
    inputs
)
attention = Attention()([lstm_out, lstm_out])
context_vector = Concatenate(axis=-1)([attention, lstm_out])
flat = Flatten()(context_vector)
# flat = LayerNormalization()(flat)
dense = Dense(50, activation="relu", kernel_regularizer=l2(l2_reg))(flat)
drop = Dropout(dropout_rate)(dense)
outputs = Dense(1, kernel_regularizer=l2(l2_reg))(drop)

rnn_attention = tf.keras.Model(inputs=inputs, outputs=outputs)

network_training(rnn_attention, "RNN-Attention")

Epoch 1/500

1/3 [=========>....................] - ETA: 1s - loss: 0.1808

WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
W0000 00:00:1744121449.930527   19535 op_level_cost_estimator.cc:699] Error in PredictCost() for the op: op: "Softmax" attr { key: "T" value { type: DT_FLOAT } } inputs { dtype: DT_FLOAT shape { unknown_rank: true } } device { type: "CPU" vendor: "GenuineIntel" model: "106" frequency: 2611 num_cores: 12 environment { key: "cpu_instruction_set" value: "AVX SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2" } environment { key: "eigen" value: "3.4.90" } l1_cache_size: 49152 l2_cache_size: 1310720 l3_cache_size: 12582912 memory_size: 268435456 } outputs { dtype: DT_FLOAT shape { unknown_rank: true } }


3/3 [==============================] - 1s 155ms/step - loss: 0.1359 - val_loss: 0.2688 - lr: 0.0010

Epoch 2/500

1/3 [=========>....................] - ETA: 0s - loss: 0.1292


3/3 [==============================] - 0s 21ms/step - loss: 0.1155 - val_loss: 0.0958 - lr: 0.0010

Epoch 3/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0865


3/3 [==============================] - 0s 23ms/step - loss: 0.0904 - val_loss: 0.1024 - lr: 0.0010

Epoch 4/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0869

W0000 00:00:1744121450.365161   19535 op_level_cost_estimator.cc:699] Error in PredictCost() for the op: op: "Softmax" attr { key: "T" value { type: DT_FLOAT } } inputs { dtype: DT_FLOAT shape { unknown_rank: true } } device { type: "CPU" vendor: "GenuineIntel" model: "106" frequency: 2611 num_cores: 12 environment { key: "cpu_instruction_set" value: "AVX SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2" } environment { key: "eigen" value: "3.4.90" } l1_cache_size: 49152 l2_cache_size: 1310720 l3_cache_size: 12582912 memory_size: 268435456 } outputs { dtype: DT_FLOAT shape { unknown_rank: true } }


3/3 [==============================] - 0s 24ms/step - loss: 0.0813 - val_loss: 0.0789 - lr: 0.0010

Epoch 5/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0684


3/3 [==============================] - 0s 25ms/step - loss: 0.0689 - val_loss: 0.0954 - lr: 0.0010

Epoch 6/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0707


3/3 [==============================] - 0s 25ms/step - loss: 0.0641 - val_loss: 0.0700 - lr: 0.0010

Epoch 7/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0571


3/3 [==============================] - 0s 25ms/step - loss: 0.0553 - val_loss: 0.0601 - lr: 0.0010

Epoch 8/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0503


3/3 [==============================] - 0s 25ms/step - loss: 0.0530 - val_loss: 0.0567 - lr: 0.0010

Epoch 9/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0478


3/3 [==============================] - 0s 25ms/step - loss: 0.0475 - val_loss: 0.0522 - lr: 0.0010

Epoch 10/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0436


3/3 [==============================] - 0s 26ms/step - loss: 0.0430 - val_loss: 0.0547 - lr: 0.0010

Epoch 11/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0416


3/3 [==============================] - 0s 26ms/step - loss: 0.0403 - val_loss: 0.0463 - lr: 0.0010

Epoch 12/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0372


3/3 [==============================] - 0s 25ms/step - loss: 0.0368 - val_loss: 0.0420 - lr: 0.0010

Epoch 13/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0366


3/3 [==============================] - 0s 25ms/step - loss: 0.0361 - val_loss: 0.0396 - lr: 0.0010

Epoch 14/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0320


3/3 [==============================] - 0s 25ms/step - loss: 0.0324 - val_loss: 0.0381 - lr: 0.0010

Epoch 15/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0300


3/3 [==============================] - 0s 26ms/step - loss: 0.0313 - val_loss: 0.0361 - lr: 0.0010

Epoch 16/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0288


3/3 [==============================] - 0s 27ms/step - loss: 0.0278 - val_loss: 0.0343 - lr: 0.0010

Epoch 17/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0297


3/3 [==============================] - 0s 27ms/step - loss: 0.0282 - val_loss: 0.0335 - lr: 0.0010

Epoch 18/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0263


3/3 [==============================] - 0s 30ms/step - loss: 0.0257 - val_loss: 0.0308 - lr: 0.0010

Epoch 19/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0238


3/3 [==============================] - 0s 29ms/step - loss: 0.0257 - val_loss: 0.0295 - lr: 0.0010

Epoch 20/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0255


3/3 [==============================] - 0s 29ms/step - loss: 0.0239 - val_loss: 0.0299 - lr: 0.0010

Epoch 21/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0254


3/3 [==============================] - 0s 39ms/step - loss: 0.0235 - val_loss: 0.0274 - lr: 0.0010

Epoch 22/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0217


3/3 [==============================] - 0s 37ms/step - loss: 0.0212 - val_loss: 0.0256 - lr: 0.0010

Epoch 23/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0189


3/3 [==============================] - 0s 29ms/step - loss: 0.0194 - val_loss: 0.0252 - lr: 0.0010

Epoch 24/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0191


3/3 [==============================] - 0s 28ms/step - loss: 0.0195 - val_loss: 0.0270 - lr: 0.0010

Epoch 25/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0194


3/3 [==============================] - 0s 26ms/step - loss: 0.0199 - val_loss: 0.0235 - lr: 0.0010

Epoch 26/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0169


3/3 [==============================] - 0s 26ms/step - loss: 0.0174 - val_loss: 0.0219 - lr: 0.0010

Epoch 27/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0180


3/3 [==============================] - 0s 25ms/step - loss: 0.0172 - val_loss: 0.0226 - lr: 0.0010

Epoch 28/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0160


3/3 [==============================] - 0s 26ms/step - loss: 0.0164 - val_loss: 0.0226 - lr: 0.0010

Epoch 29/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0190


3/3 [==============================] - 0s 25ms/step - loss: 0.0162 - val_loss: 0.0198 - lr: 0.0010

Epoch 30/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0153


3/3 [==============================] - 0s 25ms/step - loss: 0.0152 - val_loss: 0.0193 - lr: 0.0010

Epoch 31/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0180


3/3 [==============================] - 0s 33ms/step - loss: 0.0163 - val_loss: 0.0222 - lr: 0.0010

Epoch 32/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0144


3/3 [==============================] - 0s 35ms/step - loss: 0.0143 - val_loss: 0.0182 - lr: 0.0010

Epoch 33/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0160


3/3 [==============================] - 0s 26ms/step - loss: 0.0142 - val_loss: 0.0178 - lr: 0.0010

Epoch 34/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0137


3/3 [==============================] - 0s 26ms/step - loss: 0.0158 - val_loss: 0.0186 - lr: 0.0010

Epoch 35/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0140


3/3 [==============================] - 0s 26ms/step - loss: 0.0132 - val_loss: 0.0217 - lr: 0.0010

Epoch 36/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0146


3/3 [==============================] - 0s 26ms/step - loss: 0.0130 - val_loss: 0.0161 - lr: 0.0010

Epoch 37/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0121


3/3 [==============================] - 0s 42ms/step - loss: 0.0120 - val_loss: 0.0157 - lr: 0.0010

Epoch 38/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0124


3/3 [==============================] - 0s 28ms/step - loss: 0.0121 - val_loss: 0.0191 - lr: 0.0010

Epoch 39/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0101


3/3 [==============================] - 0s 26ms/step - loss: 0.0114 - val_loss: 0.0184 - lr: 0.0010

Epoch 40/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0127


3/3 [==============================] - 0s 25ms/step - loss: 0.0108 - val_loss: 0.0162 - lr: 0.0010

Epoch 41/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0113


3/3 [==============================] - 0s 25ms/step - loss: 0.0111 - val_loss: 0.0145 - lr: 0.0010

Epoch 42/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0098


3/3 [==============================] - 0s 26ms/step - loss: 0.0104 - val_loss: 0.0160 - lr: 0.0010

Epoch 43/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0096


3/3 [==============================] - 0s 25ms/step - loss: 0.0106 - val_loss: 0.0180 - lr: 0.0010

Epoch 44/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0114


3/3 [==============================] - 0s 26ms/step - loss: 0.0099 - val_loss: 0.0135 - lr: 0.0010

Epoch 45/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0124


3/3 [==============================] - 0s 25ms/step - loss: 0.0128 - val_loss: 0.0134 - lr: 0.0010

Epoch 46/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0111


3/3 [==============================] - 0s 25ms/step - loss: 0.0106 - val_loss: 0.0195 - lr: 0.0010

Epoch 47/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0105


3/3 [==============================] - 0s 24ms/step - loss: 0.0097 - val_loss: 0.0140 - lr: 0.0010

Epoch 48/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0107


3/3 [==============================] - 0s 25ms/step - loss: 0.0106 - val_loss: 0.0124 - lr: 0.0010

Epoch 49/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0089


3/3 [==============================] - 0s 25ms/step - loss: 0.0091 - val_loss: 0.0161 - lr: 0.0010

Epoch 50/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0084


3/3 [==============================] - 0s 24ms/step - loss: 0.0086 - val_loss: 0.0125 - lr: 0.0010

Epoch 51/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0079


3/3 [==============================] - 0s 24ms/step - loss: 0.0089 - val_loss: 0.0119 - lr: 0.0010

Epoch 52/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0084


3/3 [==============================] - 0s 25ms/step - loss: 0.0076 - val_loss: 0.0128 - lr: 0.0010

Epoch 53/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0093


3/3 [==============================] - 0s 25ms/step - loss: 0.0087 - val_loss: 0.0116 - lr: 0.0010

Epoch 54/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0072


3/3 [==============================] - 0s 24ms/step - loss: 0.0090 - val_loss: 0.0134 - lr: 0.0010

Epoch 55/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0087


3/3 [==============================] - 0s 24ms/step - loss: 0.0081 - val_loss: 0.0113 - lr: 0.0010

Epoch 56/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0070


3/3 [==============================] - 0s 25ms/step - loss: 0.0084 - val_loss: 0.0124 - lr: 0.0010

Epoch 57/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0077


3/3 [==============================] - 0s 26ms/step - loss: 0.0079 - val_loss: 0.0178 - lr: 0.0010

Epoch 58/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0068


3/3 [==============================] - 0s 27ms/step - loss: 0.0077 - val_loss: 0.0105 - lr: 0.0010

Epoch 59/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0071


3/3 [==============================] - 0s 25ms/step - loss: 0.0079 - val_loss: 0.0131 - lr: 0.0010

Epoch 60/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0094


3/3 [==============================] - 0s 24ms/step - loss: 0.0081 - val_loss: 0.0117 - lr: 0.0010

Epoch 61/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0061


3/3 [==============================] - 0s 25ms/step - loss: 0.0085 - val_loss: 0.0102 - lr: 0.0010

Epoch 62/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0079


3/3 [==============================] - 0s 25ms/step - loss: 0.0077 - val_loss: 0.0175 - lr: 0.0010

Epoch 63/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0083


3/3 [==============================] - 0s 26ms/step - loss: 0.0076 - val_loss: 0.0102 - lr: 0.0010

Epoch 64/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0053


3/3 [==============================] - 0s 25ms/step - loss: 0.0074 - val_loss: 0.0096 - lr: 0.0010

Epoch 65/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0078


3/3 [==============================] - 0s 25ms/step - loss: 0.0075 - val_loss: 0.0219 - lr: 0.0010

Epoch 66/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0082


3/3 [==============================] - 0s 25ms/step - loss: 0.0077 - val_loss: 0.0100 - lr: 0.0010

Epoch 67/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0075


3/3 [==============================] - 0s 24ms/step - loss: 0.0080 - val_loss: 0.0132 - lr: 0.0010

Epoch 68/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0081


3/3 [==============================] - 0s 25ms/step - loss: 0.0088 - val_loss: 0.0115 - lr: 0.0010

Epoch 69/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0062


3/3 [==============================] - 0s 27ms/step - loss: 0.0073 - val_loss: 0.0099 - lr: 0.0010

Epoch 70/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0087


3/3 [==============================] - 0s 30ms/step - loss: 0.0077 - val_loss: 0.0200 - lr: 0.0010

Epoch 71/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0072


3/3 [==============================] - 0s 31ms/step - loss: 0.0083 - val_loss: 0.0122 - lr: 0.0010

Epoch 72/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0070


3/3 [==============================] - 0s 29ms/step - loss: 0.0068 - val_loss: 0.0094 - lr: 0.0010

Epoch 73/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0088


3/3 [==============================] - 0s 26ms/step - loss: 0.0075 - val_loss: 0.0131 - lr: 0.0010

Epoch 74/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0068


3/3 [==============================] - 0s 28ms/step - loss: 0.0078 - val_loss: 0.0114 - lr: 0.0010

Epoch 75/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0079


3/3 [==============================] - 0s 26ms/step - loss: 0.0075 - val_loss: 0.0087 - lr: 0.0010

Epoch 76/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0078


3/3 [==============================] - 0s 25ms/step - loss: 0.0076 - val_loss: 0.0084 - lr: 0.0010

Epoch 77/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0060


3/3 [==============================] - 0s 25ms/step - loss: 0.0065 - val_loss: 0.0109 - lr: 0.0010

Epoch 78/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0076


3/3 [==============================] - 0s 26ms/step - loss: 0.0069 - val_loss: 0.0110 - lr: 0.0010

Epoch 79/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0051


3/3 [==============================] - 0s 25ms/step - loss: 0.0057 - val_loss: 0.0087 - lr: 0.0010

Epoch 80/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0064


3/3 [==============================] - 0s 27ms/step - loss: 0.0062 - val_loss: 0.0082 - lr: 0.0010

Epoch 81/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0050


3/3 [==============================] - 0s 25ms/step - loss: 0.0053 - val_loss: 0.0138 - lr: 0.0010

Epoch 82/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0063


3/3 [==============================] - 0s 25ms/step - loss: 0.0061 - val_loss: 0.0071 - lr: 0.0010

Epoch 83/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0052


3/3 [==============================] - 0s 25ms/step - loss: 0.0056 - val_loss: 0.0084 - lr: 0.0010

Epoch 84/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0077


3/3 [==============================] - 0s 25ms/step - loss: 0.0075 - val_loss: 0.0145 - lr: 0.0010

Epoch 85/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0072


3/3 [==============================] - 0s 27ms/step - loss: 0.0061 - val_loss: 0.0068 - lr: 0.0010

Epoch 86/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0060


3/3 [==============================] - 0s 26ms/step - loss: 0.0064 - val_loss: 0.0099 - lr: 0.0010

Epoch 87/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0046


3/3 [==============================] - 0s 25ms/step - loss: 0.0053 - val_loss: 0.0075 - lr: 0.0010

Epoch 88/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0053


3/3 [==============================] - 0s 24ms/step - loss: 0.0057 - val_loss: 0.0074 - lr: 0.0010

Epoch 89/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0068


3/3 [==============================] - 0s 24ms/step - loss: 0.0064 - val_loss: 0.0097 - lr: 0.0010

Epoch 90/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0073


3/3 [==============================] - 0s 25ms/step - loss: 0.0066 - val_loss: 0.0062 - lr: 0.0010

Epoch 91/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0074


3/3 [==============================] - 0s 25ms/step - loss: 0.0070 - val_loss: 0.0133 - lr: 0.0010

Epoch 92/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0060


3/3 [==============================] - 0s 27ms/step - loss: 0.0056 - val_loss: 0.0060 - lr: 0.0010

Epoch 93/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0055


3/3 [==============================] - 0s 24ms/step - loss: 0.0048 - val_loss: 0.0177 - lr: 0.0010

Epoch 94/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0075


3/3 [==============================] - 0s 25ms/step - loss: 0.0063 - val_loss: 0.0076 - lr: 0.0010

Epoch 95/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0044


3/3 [==============================] - 0s 26ms/step - loss: 0.0060 - val_loss: 0.0088 - lr: 0.0010

Epoch 96/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0057


3/3 [==============================] - 0s 24ms/step - loss: 0.0063 - val_loss: 0.0095 - lr: 0.0010

Epoch 97/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0048


3/3 [==============================] - 0s 23ms/step - loss: 0.0061 - val_loss: 0.0060 - lr: 0.0010

Epoch 98/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0073


3/3 [==============================] - 0s 24ms/step - loss: 0.0066 - val_loss: 0.0139 - lr: 0.0010

Epoch 99/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0062


3/3 [==============================] - 0s 26ms/step - loss: 0.0058 - val_loss: 0.0057 - lr: 0.0010

Epoch 100/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0062


3/3 [==============================] - 0s 23ms/step - loss: 0.0060 - val_loss: 0.0115 - lr: 0.0010

Epoch 101/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0054


3/3 [==============================] - 0s 23ms/step - loss: 0.0057 - val_loss: 0.0082 - lr: 0.0010

Epoch 102/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0056


3/3 [==============================] - 0s 27ms/step - loss: 0.0050 - val_loss: 0.0054 - lr: 0.0010

Epoch 103/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0052


3/3 [==============================] - ETA: 0s - loss: 0.0060


3/3 [==============================] - 0s 54ms/step - loss: 0.0060 - val_loss: 0.0124 - lr: 0.0010

Epoch 104/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0070


3/3 [==============================] - ETA: 0s - loss: 0.0054


3/3 [==============================] - 0s 40ms/step - loss: 0.0054 - val_loss: 0.0052 - lr: 0.0010

Epoch 105/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0061


3/3 [==============================] - 0s 28ms/step - loss: 0.0053 - val_loss: 0.0051 - lr: 0.0010

Epoch 106/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0059


3/3 [==============================] - 0s 25ms/step - loss: 0.0052 - val_loss: 0.0218 - lr: 0.0010

Epoch 107/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0059


3/3 [==============================] - 0s 28ms/step - loss: 0.0051 - val_loss: 0.0053 - lr: 0.0010

Epoch 108/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0051


3/3 [==============================] - 0s 25ms/step - loss: 0.0068 - val_loss: 0.0070 - lr: 0.0010

Epoch 109/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0050


3/3 [==============================] - 0s 26ms/step - loss: 0.0056 - val_loss: 0.0174 - lr: 0.0010

Epoch 110/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0041


3/3 [==============================] - 0s 27ms/step - loss: 0.0051 - val_loss: 0.0053 - lr: 0.0010

Epoch 111/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0040


3/3 [==============================] - 0s 57ms/step - loss: 0.0059 - val_loss: 0.0075 - lr: 0.0010

Epoch 112/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0039


3/3 [==============================] - 0s 31ms/step - loss: 0.0049 - val_loss: 0.0133 - lr: 0.0010

Epoch 113/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0049


3/3 [==============================] - 0s 29ms/step - loss: 0.0047 - val_loss: 0.0062 - lr: 0.0010

Epoch 114/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0041


3/3 [==============================] - 0s 33ms/step - loss: 0.0048 - val_loss: 0.0063 - lr: 0.0010

Epoch 115/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0047

Epoch 115: ReduceLROnPlateau reducing learning rate to 0.00010000000474974513.


3/3 [==============================] - 0s 38ms/step - loss: 0.0058 - val_loss: 0.0079 - lr: 0.0010

Epoch 116/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0042


3/3 [==============================] - ETA: 0s - loss: 0.0041


3/3 [==============================] - 0s 40ms/step - loss: 0.0041 - val_loss: 0.0063 - lr: 1.0000e-04

Epoch 117/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0044


3/3 [==============================] - 0s 29ms/step - loss: 0.0046 - val_loss: 0.0059 - lr: 1.0000e-04

Epoch 118/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0044


3/3 [==============================] - 0s 28ms/step - loss: 0.0042 - val_loss: 0.0060 - lr: 1.0000e-04

Epoch 119/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0039


3/3 [==============================] - 0s 28ms/step - loss: 0.0044 - val_loss: 0.0065 - lr: 1.0000e-04

Epoch 120/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0043


3/3 [==============================] - 0s 27ms/step - loss: 0.0045 - val_loss: 0.0071 - lr: 1.0000e-04

Epoch 121/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0046


3/3 [==============================] - 0s 27ms/step - loss: 0.0045 - val_loss: 0.0071 - lr: 1.0000e-04

Epoch 122/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0057


3/3 [==============================] - 0s 24ms/step - loss: 0.0045 - val_loss: 0.0071 - lr: 1.0000e-04

Epoch 123/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0034


3/3 [==============================] - 0s 29ms/step - loss: 0.0037 - val_loss: 0.0066 - lr: 1.0000e-04

Epoch 124/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0049


3/3 [==============================] - 0s 33ms/step - loss: 0.0050 - val_loss: 0.0062 - lr: 1.0000e-04

Epoch 125/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0044

Epoch 125: ReduceLROnPlateau reducing learning rate to 1.0000000474974514e-05.


3/3 [==============================] - 0s 28ms/step - loss: 0.0042 - val_loss: 0.0060 - lr: 1.0000e-04

Epoch 125: early stopping
../_images/a20d9d5697166e468e0c3d2d0b3bf044b4b7af1363cc090ccabfb0a1e8846a2f.png

Non-Rolling Prediction#

non_rolling_prediction(rnn_attention, scaler)

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 376ms/step

W0000 00:00:1744121459.818569   19535 op_level_cost_estimator.cc:699] Error in PredictCost() for the op: op: "Softmax" attr { key: "T" value { type: DT_FLOAT } } inputs { dtype: DT_FLOAT shape { unknown_rank: true } } device { type: "CPU" vendor: "GenuineIntel" model: "106" frequency: 2611 num_cores: 12 environment { key: "cpu_instruction_set" value: "AVX SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2" } environment { key: "eigen" value: "3.4.90" } l1_cache_size: 49152 l2_cache_size: 1310720 l3_cache_size: 12582912 memory_size: 268435456 } outputs { dtype: DT_FLOAT shape { unknown_rank: true } }
../_images/8ff01190f587f97dff48a06d9eb21dc4c08cfa11d684bfba50c63f279b84e47c.png

Rolling Prediction#

rolling_prediction(rnn_attention, scaler)

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 19ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 19ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 18ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 20ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 15ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 13ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 13ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 18ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 33ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 27ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 20ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 19ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 17ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 16ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 15ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 15ms/step

No artists with labels found to put in legend.  Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
../_images/cea3955ff5007c7aa2cb7fed87ffbf816a7b94da3a45ce3fa54d0e96f7d233b4.png

CNN Model Building and Training#

cnn = Sequential()

# Input layer - Convolutional layer
cnn.add(
    Conv1D(filters=64, kernel_size=5, activation="relu", input_shape=(look_back, 1)))

# Additional convolutional layer
cnn.add(Conv1D(filters=64, kernel_size=5, activation="relu"))

# Max pooling layer
cnn.add(MaxPooling1D(pool_size=2))

# Flatten layer to prepare data for Dense layer
cnn.add(Flatten())

# Dense layer for prediction
cnn.add(Dense(50, activation='relu', kernel_regularizer=l2(l2_reg)))
cnn.add(Dense(1, kernel_regularizer=l2(l2_reg)))

network_training(cnn, "CNN")

Epoch 1/500

1/3 [=========>....................] - ETA: 0s - loss: 0.1902


3/3 [==============================] - 1s 104ms/step - loss: 0.1824 - val_loss: 0.2944 - lr: 0.0010

Epoch 2/500

1/3 [=========>....................] - ETA: 0s - loss: 0.1396


3/3 [==============================] - 0s 17ms/step - loss: 0.1279 - val_loss: 0.1975 - lr: 0.0010

Epoch 3/500

1/3 [=========>....................] - ETA: 0s - loss: 0.1099


3/3 [==============================] - 0s 19ms/step - loss: 0.0987 - val_loss: 0.1225 - lr: 0.0010

Epoch 4/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0814


3/3 [==============================] - 0s 16ms/step - loss: 0.0772 - val_loss: 0.0856 - lr: 0.0010

Epoch 5/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0702


3/3 [==============================] - 0s 17ms/step - loss: 0.0726 - val_loss: 0.0943 - lr: 0.0010

Epoch 6/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0758


3/3 [==============================] - 0s 16ms/step - loss: 0.0754 - val_loss: 0.0921 - lr: 0.0010

Epoch 7/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0731


3/3 [==============================] - 0s 18ms/step - loss: 0.0705 - val_loss: 0.0796 - lr: 0.0010

Epoch 8/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0665


3/3 [==============================] - 0s 18ms/step - loss: 0.0648 - val_loss: 0.0769 - lr: 0.0010

Epoch 9/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0615


3/3 [==============================] - 0s 15ms/step - loss: 0.0619 - val_loss: 0.0793 - lr: 0.0010

Epoch 10/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0598


3/3 [==============================] - 0s 15ms/step - loss: 0.0609 - val_loss: 0.0785 - lr: 0.0010

Epoch 11/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0595


3/3 [==============================] - 0s 12ms/step - loss: 0.0589 - val_loss: 0.0731 - lr: 0.0010

Epoch 12/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0582


3/3 [==============================] - 0s 16ms/step - loss: 0.0559 - val_loss: 0.0674 - lr: 0.0010

Epoch 13/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0564


3/3 [==============================] - 0s 21ms/step - loss: 0.0537 - val_loss: 0.0641 - lr: 0.0010

Epoch 14/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0505


3/3 [==============================] - 0s 14ms/step - loss: 0.0516 - val_loss: 0.0625 - lr: 0.0010

Epoch 15/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0508


3/3 [==============================] - 0s 17ms/step - loss: 0.0500 - val_loss: 0.0602 - lr: 0.0010

Epoch 16/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0493


3/3 [==============================] - 0s 14ms/step - loss: 0.0481 - val_loss: 0.0576 - lr: 0.0010

Epoch 17/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0495


3/3 [==============================] - 0s 14ms/step - loss: 0.0461 - val_loss: 0.0556 - lr: 0.0010

Epoch 18/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0451


3/3 [==============================] - 0s 14ms/step - loss: 0.0446 - val_loss: 0.0537 - lr: 0.0010

Epoch 19/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0414


3/3 [==============================] - 0s 12ms/step - loss: 0.0430 - val_loss: 0.0516 - lr: 0.0010

Epoch 20/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0445


3/3 [==============================] - 0s 12ms/step - loss: 0.0414 - val_loss: 0.0499 - lr: 0.0010

Epoch 21/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0419


3/3 [==============================] - 0s 11ms/step - loss: 0.0399 - val_loss: 0.0486 - lr: 0.0010

Epoch 22/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0395


3/3 [==============================] - 0s 14ms/step - loss: 0.0385 - val_loss: 0.0467 - lr: 0.0010

Epoch 23/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0370


3/3 [==============================] - 0s 16ms/step - loss: 0.0371 - val_loss: 0.0447 - lr: 0.0010

Epoch 24/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0365


3/3 [==============================] - 0s 26ms/step - loss: 0.0358 - val_loss: 0.0433 - lr: 0.0010

Epoch 25/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0366


3/3 [==============================] - 0s 24ms/step - loss: 0.0345 - val_loss: 0.0420 - lr: 0.0010

Epoch 26/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0338


3/3 [==============================] - 0s 19ms/step - loss: 0.0333 - val_loss: 0.0404 - lr: 0.0010

Epoch 27/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0335


3/3 [==============================] - 0s 16ms/step - loss: 0.0321 - val_loss: 0.0390 - lr: 0.0010

Epoch 28/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0319


3/3 [==============================] - 0s 17ms/step - loss: 0.0310 - val_loss: 0.0379 - lr: 0.0010

Epoch 29/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0315


3/3 [==============================] - 0s 17ms/step - loss: 0.0299 - val_loss: 0.0366 - lr: 0.0010

Epoch 30/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0295


3/3 [==============================] - 0s 13ms/step - loss: 0.0289 - val_loss: 0.0348 - lr: 0.0010

Epoch 31/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0289


3/3 [==============================] - 0s 17ms/step - loss: 0.0279 - val_loss: 0.0337 - lr: 0.0010

Epoch 32/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0273


3/3 [==============================] - 0s 50ms/step - loss: 0.0270 - val_loss: 0.0319 - lr: 0.0010

Epoch 33/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0278


3/3 [==============================] - 0s 17ms/step - loss: 0.0260 - val_loss: 0.0314 - lr: 0.0010

Epoch 34/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0255


3/3 [==============================] - 0s 15ms/step - loss: 0.0251 - val_loss: 0.0307 - lr: 0.0010

Epoch 35/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0249


3/3 [==============================] - 0s 14ms/step - loss: 0.0243 - val_loss: 0.0299 - lr: 0.0010

Epoch 36/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0236


3/3 [==============================] - 0s 15ms/step - loss: 0.0235 - val_loss: 0.0278 - lr: 0.0010

Epoch 37/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0235


3/3 [==============================] - 0s 11ms/step - loss: 0.0228 - val_loss: 0.0264 - lr: 0.0010

Epoch 38/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0227


3/3 [==============================] - 0s 12ms/step - loss: 0.0220 - val_loss: 0.0264 - lr: 0.0010

Epoch 39/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0219


3/3 [==============================] - 0s 14ms/step - loss: 0.0213 - val_loss: 0.0260 - lr: 0.0010

Epoch 40/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0212


3/3 [==============================] - 0s 13ms/step - loss: 0.0207 - val_loss: 0.0250 - lr: 0.0010

Epoch 41/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0205


3/3 [==============================] - 0s 13ms/step - loss: 0.0200 - val_loss: 0.0224 - lr: 0.0010

Epoch 42/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0191


3/3 [==============================] - 0s 13ms/step - loss: 0.0193 - val_loss: 0.0221 - lr: 0.0010

Epoch 43/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0189


3/3 [==============================] - 0s 12ms/step - loss: 0.0187 - val_loss: 0.0226 - lr: 0.0010

Epoch 44/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0188


3/3 [==============================] - 0s 12ms/step - loss: 0.0181 - val_loss: 0.0219 - lr: 0.0010

Epoch 45/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0177


3/3 [==============================] - 0s 11ms/step - loss: 0.0176 - val_loss: 0.0196 - lr: 0.0010

Epoch 46/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0172


3/3 [==============================] - 0s 20ms/step - loss: 0.0171 - val_loss: 0.0197 - lr: 0.0010

Epoch 47/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0170


3/3 [==============================] - 0s 11ms/step - loss: 0.0165 - val_loss: 0.0196 - lr: 0.0010

Epoch 48/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0160


3/3 [==============================] - 0s 11ms/step - loss: 0.0161 - val_loss: 0.0185 - lr: 0.0010

Epoch 49/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0158


3/3 [==============================] - 0s 12ms/step - loss: 0.0156 - val_loss: 0.0178 - lr: 0.0010

Epoch 50/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0150


3/3 [==============================] - 0s 11ms/step - loss: 0.0152 - val_loss: 0.0173 - lr: 0.0010

Epoch 51/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0147


3/3 [==============================] - 0s 11ms/step - loss: 0.0147 - val_loss: 0.0174 - lr: 0.0010

Epoch 52/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0144


3/3 [==============================] - 0s 11ms/step - loss: 0.0144 - val_loss: 0.0168 - lr: 0.0010

Epoch 53/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0142


3/3 [==============================] - 0s 12ms/step - loss: 0.0140 - val_loss: 0.0160 - lr: 0.0010

Epoch 54/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0137


3/3 [==============================] - 0s 11ms/step - loss: 0.0136 - val_loss: 0.0156 - lr: 0.0010

Epoch 55/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0131


3/3 [==============================] - 0s 10ms/step - loss: 0.0133 - val_loss: 0.0157 - lr: 0.0010

Epoch 56/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0130


3/3 [==============================] - 0s 10ms/step - loss: 0.0129 - val_loss: 0.0154 - lr: 0.0010

Epoch 57/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0129


3/3 [==============================] - 0s 10ms/step - loss: 0.0126 - val_loss: 0.0144 - lr: 0.0010

Epoch 58/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0123


3/3 [==============================] - 0s 10ms/step - loss: 0.0123 - val_loss: 0.0143 - lr: 0.0010

Epoch 59/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0120


3/3 [==============================] - 0s 10ms/step - loss: 0.0120 - val_loss: 0.0143 - lr: 0.0010

Epoch 60/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0120


3/3 [==============================] - 0s 10ms/step - loss: 0.0117 - val_loss: 0.0143 - lr: 0.0010

Epoch 61/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0115


3/3 [==============================] - 0s 10ms/step - loss: 0.0114 - val_loss: 0.0136 - lr: 0.0010

Epoch 62/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0113


3/3 [==============================] - 0s 10ms/step - loss: 0.0112 - val_loss: 0.0134 - lr: 0.0010

Epoch 63/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0112


3/3 [==============================] - 0s 9ms/step - loss: 0.0109 - val_loss: 0.0132 - lr: 0.0010

Epoch 64/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0104


3/3 [==============================] - 0s 10ms/step - loss: 0.0107 - val_loss: 0.0126 - lr: 0.0010

Epoch 65/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0106


3/3 [==============================] - 0s 9ms/step - loss: 0.0104 - val_loss: 0.0123 - lr: 0.0010

Epoch 66/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0104


3/3 [==============================] - 0s 9ms/step - loss: 0.0102 - val_loss: 0.0127 - lr: 0.0010

Epoch 67/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0100


3/3 [==============================] - 0s 10ms/step - loss: 0.0100 - val_loss: 0.0120 - lr: 0.0010

Epoch 68/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0099


3/3 [==============================] - 0s 10ms/step - loss: 0.0097 - val_loss: 0.0118 - lr: 0.0010

Epoch 69/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0094


3/3 [==============================] - 0s 10ms/step - loss: 0.0095 - val_loss: 0.0116 - lr: 0.0010

Epoch 70/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0096


3/3 [==============================] - 0s 10ms/step - loss: 0.0093 - val_loss: 0.0113 - lr: 0.0010

Epoch 71/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0092


3/3 [==============================] - 0s 10ms/step - loss: 0.0091 - val_loss: 0.0114 - lr: 0.0010

Epoch 72/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0090


3/3 [==============================] - 0s 10ms/step - loss: 0.0089 - val_loss: 0.0115 - lr: 0.0010

Epoch 73/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0087


3/3 [==============================] - 0s 10ms/step - loss: 0.0088 - val_loss: 0.0109 - lr: 0.0010

Epoch 74/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0087


3/3 [==============================] - 0s 10ms/step - loss: 0.0086 - val_loss: 0.0103 - lr: 0.0010

Epoch 75/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0083


3/3 [==============================] - 0s 9ms/step - loss: 0.0084 - val_loss: 0.0107 - lr: 0.0010

Epoch 76/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0081


3/3 [==============================] - 0s 10ms/step - loss: 0.0083 - val_loss: 0.0104 - lr: 0.0010

Epoch 77/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0080


3/3 [==============================] - 0s 10ms/step - loss: 0.0081 - val_loss: 0.0100 - lr: 0.0010

Epoch 78/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0082


3/3 [==============================] - 0s 9ms/step - loss: 0.0079 - val_loss: 0.0095 - lr: 0.0010

Epoch 79/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0078


3/3 [==============================] - 0s 10ms/step - loss: 0.0078 - val_loss: 0.0101 - lr: 0.0010

Epoch 80/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0076


3/3 [==============================] - 0s 10ms/step - loss: 0.0076 - val_loss: 0.0101 - lr: 0.0010

Epoch 81/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0073


3/3 [==============================] - 0s 10ms/step - loss: 0.0075 - val_loss: 0.0093 - lr: 0.0010

Epoch 82/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0074


3/3 [==============================] - 0s 9ms/step - loss: 0.0074 - val_loss: 0.0093 - lr: 0.0010

Epoch 83/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0072


3/3 [==============================] - 0s 9ms/step - loss: 0.0072 - val_loss: 0.0094 - lr: 0.0010

Epoch 84/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0069


3/3 [==============================] - 0s 9ms/step - loss: 0.0071 - val_loss: 0.0095 - lr: 0.0010

Epoch 85/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0071


3/3 [==============================] - 0s 10ms/step - loss: 0.0070 - val_loss: 0.0087 - lr: 0.0010

Epoch 86/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0068


3/3 [==============================] - 0s 10ms/step - loss: 0.0068 - val_loss: 0.0093 - lr: 0.0010

Epoch 87/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0067


3/3 [==============================] - 0s 11ms/step - loss: 0.0067 - val_loss: 0.0089 - lr: 0.0010

Epoch 88/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0065


3/3 [==============================] - 0s 11ms/step - loss: 0.0066 - val_loss: 0.0086 - lr: 0.0010

Epoch 89/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0065


3/3 [==============================] - 0s 10ms/step - loss: 0.0065 - val_loss: 0.0087 - lr: 0.0010

Epoch 90/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0064


3/3 [==============================] - 0s 11ms/step - loss: 0.0064 - val_loss: 0.0085 - lr: 0.0010

Epoch 91/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0064


3/3 [==============================] - 0s 12ms/step - loss: 0.0063 - val_loss: 0.0084 - lr: 0.0010

Epoch 92/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0064


3/3 [==============================] - 0s 11ms/step - loss: 0.0062 - val_loss: 0.0081 - lr: 0.0010

Epoch 93/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0061


3/3 [==============================] - 0s 10ms/step - loss: 0.0061 - val_loss: 0.0083 - lr: 0.0010

Epoch 94/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0061


3/3 [==============================] - 0s 10ms/step - loss: 0.0060 - val_loss: 0.0081 - lr: 0.0010

Epoch 95/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0059


3/3 [==============================] - 0s 11ms/step - loss: 0.0059 - val_loss: 0.0080 - lr: 0.0010

Epoch 96/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0058


3/3 [==============================] - 0s 11ms/step - loss: 0.0058 - val_loss: 0.0081 - lr: 0.0010

Epoch 97/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0057


3/3 [==============================] - 0s 15ms/step - loss: 0.0057 - val_loss: 0.0075 - lr: 0.0010

Epoch 98/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0056


3/3 [==============================] - 0s 12ms/step - loss: 0.0056 - val_loss: 0.0079 - lr: 0.0010

Epoch 99/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0056


3/3 [==============================] - 0s 11ms/step - loss: 0.0055 - val_loss: 0.0076 - lr: 0.0010

Epoch 100/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0054


3/3 [==============================] - 0s 11ms/step - loss: 0.0054 - val_loss: 0.0072 - lr: 0.0010

Epoch 101/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0054


3/3 [==============================] - 0s 12ms/step - loss: 0.0053 - val_loss: 0.0079 - lr: 0.0010

Epoch 102/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0053


3/3 [==============================] - 0s 11ms/step - loss: 0.0053 - val_loss: 0.0074 - lr: 0.0010

Epoch 103/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0055


3/3 [==============================] - 0s 10ms/step - loss: 0.0053 - val_loss: 0.0065 - lr: 0.0010

Epoch 104/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0050


3/3 [==============================] - 0s 10ms/step - loss: 0.0051 - val_loss: 0.0081 - lr: 0.0010

Epoch 105/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0050


3/3 [==============================] - 0s 11ms/step - loss: 0.0051 - val_loss: 0.0077 - lr: 0.0010

Epoch 106/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0052


3/3 [==============================] - 0s 10ms/step - loss: 0.0050 - val_loss: 0.0062 - lr: 0.0010

Epoch 107/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0049


3/3 [==============================] - 0s 12ms/step - loss: 0.0049 - val_loss: 0.0074 - lr: 0.0010

Epoch 108/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0048


3/3 [==============================] - 0s 16ms/step - loss: 0.0048 - val_loss: 0.0073 - lr: 0.0010

Epoch 109/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0046


3/3 [==============================] - 0s 23ms/step - loss: 0.0047 - val_loss: 0.0064 - lr: 0.0010

Epoch 110/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0047


3/3 [==============================] - 0s 11ms/step - loss: 0.0047 - val_loss: 0.0069 - lr: 0.0010

Epoch 111/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0047


3/3 [==============================] - 0s 10ms/step - loss: 0.0046 - val_loss: 0.0067 - lr: 0.0010

Epoch 112/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0045


3/3 [==============================] - 0s 11ms/step - loss: 0.0045 - val_loss: 0.0066 - lr: 0.0010

Epoch 113/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0044


3/3 [==============================] - 0s 11ms/step - loss: 0.0045 - val_loss: 0.0066 - lr: 0.0010

Epoch 114/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0044


3/3 [==============================] - 0s 11ms/step - loss: 0.0044 - val_loss: 0.0061 - lr: 0.0010

Epoch 115/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0043


3/3 [==============================] - 0s 10ms/step - loss: 0.0044 - val_loss: 0.0067 - lr: 0.0010

Epoch 116/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0044


3/3 [==============================] - 0s 11ms/step - loss: 0.0043 - val_loss: 0.0062 - lr: 0.0010

Epoch 117/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0043


3/3 [==============================] - 0s 10ms/step - loss: 0.0042 - val_loss: 0.0063 - lr: 0.0010

Epoch 118/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0042


3/3 [==============================] - 0s 11ms/step - loss: 0.0042 - val_loss: 0.0064 - lr: 0.0010

Epoch 119/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0040


3/3 [==============================] - 0s 12ms/step - loss: 0.0041 - val_loss: 0.0059 - lr: 0.0010

Epoch 120/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0040


3/3 [==============================] - 0s 10ms/step - loss: 0.0041 - val_loss: 0.0067 - lr: 0.0010

Epoch 121/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0041


3/3 [==============================] - 0s 10ms/step - loss: 0.0040 - val_loss: 0.0059 - lr: 0.0010

Epoch 122/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0038


3/3 [==============================] - 0s 10ms/step - loss: 0.0040 - val_loss: 0.0057 - lr: 0.0010

Epoch 123/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0039


3/3 [==============================] - 0s 9ms/step - loss: 0.0039 - val_loss: 0.0064 - lr: 0.0010

Epoch 124/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0037


3/3 [==============================] - 0s 9ms/step - loss: 0.0039 - val_loss: 0.0061 - lr: 0.0010

Epoch 125/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0041


3/3 [==============================] - 0s 9ms/step - loss: 0.0038 - val_loss: 0.0055 - lr: 0.0010

Epoch 126/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0037


3/3 [==============================] - 0s 10ms/step - loss: 0.0038 - val_loss: 0.0062 - lr: 0.0010

Epoch 127/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0036


3/3 [==============================] - 0s 9ms/step - loss: 0.0037 - val_loss: 0.0054 - lr: 0.0010

Epoch 128/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0037


3/3 [==============================] - 0s 10ms/step - loss: 0.0037 - val_loss: 0.0054 - lr: 0.0010

Epoch 129/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0036


3/3 [==============================] - 0s 9ms/step - loss: 0.0036 - val_loss: 0.0061 - lr: 0.0010

Epoch 130/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0036


3/3 [==============================] - 0s 9ms/step - loss: 0.0036 - val_loss: 0.0055 - lr: 0.0010

Epoch 131/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0034


3/3 [==============================] - 0s 11ms/step - loss: 0.0035 - val_loss: 0.0053 - lr: 0.0010

Epoch 132/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0036


3/3 [==============================] - 0s 13ms/step - loss: 0.0035 - val_loss: 0.0057 - lr: 0.0010

Epoch 133/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0033


3/3 [==============================] - 0s 11ms/step - loss: 0.0035 - val_loss: 0.0055 - lr: 0.0010

Epoch 134/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0035


3/3 [==============================] - 0s 11ms/step - loss: 0.0034 - val_loss: 0.0053 - lr: 0.0010

Epoch 135/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0034


3/3 [==============================] - 0s 12ms/step - loss: 0.0034 - val_loss: 0.0057 - lr: 0.0010

Epoch 136/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0035


3/3 [==============================] - 0s 16ms/step - loss: 0.0034 - val_loss: 0.0053 - lr: 0.0010

Epoch 137/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0034


3/3 [==============================] - 0s 20ms/step - loss: 0.0033 - val_loss: 0.0061 - lr: 0.0010

Epoch 138/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0033

Epoch 138: ReduceLROnPlateau reducing learning rate to 0.00010000000474974513.


3/3 [==============================] - 0s 24ms/step - loss: 0.0033 - val_loss: 0.0055 - lr: 0.0010

Epoch 139/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0032


3/3 [==============================] - 0s 21ms/step - loss: 0.0032 - val_loss: 0.0054 - lr: 1.0000e-04

Epoch 140/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0031


3/3 [==============================] - 0s 17ms/step - loss: 0.0032 - val_loss: 0.0053 - lr: 1.0000e-04

Epoch 141/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0031


3/3 [==============================] - 0s 18ms/step - loss: 0.0032 - val_loss: 0.0052 - lr: 1.0000e-04

Epoch 142/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0031


3/3 [==============================] - 0s 16ms/step - loss: 0.0032 - val_loss: 0.0053 - lr: 1.0000e-04

Epoch 143/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0033


3/3 [==============================] - 0s 17ms/step - loss: 0.0032 - val_loss: 0.0053 - lr: 1.0000e-04

Epoch 144/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0031


3/3 [==============================] - 0s 14ms/step - loss: 0.0032 - val_loss: 0.0053 - lr: 1.0000e-04

Epoch 145/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0032


3/3 [==============================] - 0s 14ms/step - loss: 0.0032 - val_loss: 0.0054 - lr: 1.0000e-04

Epoch 146/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0033


3/3 [==============================] - 0s 15ms/step - loss: 0.0032 - val_loss: 0.0054 - lr: 1.0000e-04

Epoch 147/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0031


3/3 [==============================] - 0s 13ms/step - loss: 0.0032 - val_loss: 0.0054 - lr: 1.0000e-04

Epoch 148/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0032


3/3 [==============================] - 0s 13ms/step - loss: 0.0032 - val_loss: 0.0054 - lr: 1.0000e-04

Epoch 149/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0031


3/3 [==============================] - 0s 13ms/step - loss: 0.0032 - val_loss: 0.0053 - lr: 1.0000e-04

Epoch 150/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0033


3/3 [==============================] - 0s 14ms/step - loss: 0.0032 - val_loss: 0.0053 - lr: 1.0000e-04

Epoch 151/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0031

Epoch 151: ReduceLROnPlateau reducing learning rate to 1.0000000474974514e-05.


3/3 [==============================] - 0s 14ms/step - loss: 0.0032 - val_loss: 0.0052 - lr: 1.0000e-04

Epoch 152/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0033


3/3 [==============================] - 0s 14ms/step - loss: 0.0032 - val_loss: 0.0052 - lr: 1.0000e-05

Epoch 153/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0031


3/3 [==============================] - 0s 13ms/step - loss: 0.0032 - val_loss: 0.0052 - lr: 1.0000e-05

Epoch 154/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0031


3/3 [==============================] - 0s 13ms/step - loss: 0.0032 - val_loss: 0.0052 - lr: 1.0000e-05

Epoch 155/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0031


3/3 [==============================] - 0s 13ms/step - loss: 0.0032 - val_loss: 0.0053 - lr: 1.0000e-05

Epoch 156/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0031


3/3 [==============================] - 0s 12ms/step - loss: 0.0032 - val_loss: 0.0053 - lr: 1.0000e-05

Epoch 157/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0032


3/3 [==============================] - 0s 12ms/step - loss: 0.0032 - val_loss: 0.0053 - lr: 1.0000e-05

Epoch 158/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0031


3/3 [==============================] - 0s 11ms/step - loss: 0.0032 - val_loss: 0.0053 - lr: 1.0000e-05

Epoch 159/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0033


3/3 [==============================] - 0s 11ms/step - loss: 0.0032 - val_loss: 0.0053 - lr: 1.0000e-05

Epoch 160/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0031


3/3 [==============================] - 0s 11ms/step - loss: 0.0032 - val_loss: 0.0053 - lr: 1.0000e-05

Epoch 161/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0033

Epoch 161: ReduceLROnPlateau reducing learning rate to 1.0000000656873453e-06.


3/3 [==============================] - 0s 13ms/step - loss: 0.0032 - val_loss: 0.0053 - lr: 1.0000e-05

Epoch 161: early stopping
../_images/cab57a41b5a5653d54ff80c2f5192d6e699727f2ac20226eca468e271933e69a.png

Non-Rolling Prediction#

non_rolling_prediction(cnn, scaler)

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 48ms/step
../_images/860950aa038b2b6e18b9bb5017677e8c2e72258f3c85855193c407c748fad03b.png

Rolling Prediction#

rolling_prediction(cnn, scaler)

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 15ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 16ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 13ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 13ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 21ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 15ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 11ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 14ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 13ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 13ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 13ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 13ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 13ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 13ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 13ms/step

No artists with labels found to put in legend.  Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
../_images/eefe9a0a31f1943f4966731158adea640bca69cfa447f5da94ab41dfe39513ae.png

Transformer Model Building and Training#

# Transformer Encoder Block
def transformer_encoder(inputs, head_size, num_heads, ff_dim, dropout=0):
    # Normalization and Attention
    # x = LayerNormalization()(inputs)
    x = MultiHeadAttention(key_dim=head_size, num_heads=num_heads, dropout=dropout)(
        inputs, inputs
    )
    x = Dropout(dropout)(x)
    res = x + inputs
    # res = LayerNormalization()(res)

    # Feed Forward Part
    # x = LayerNormalization()(res)
    x = Dense(ff_dim, activation="relu")(x)
    x = Dropout(dropout)(x)
    x = Dense(inputs.shape[-1])(x)
    res = x + res
    # res = LayerNormalization()(res)
    return res

# Model parameters
ff_dim = 64  # Hidden layer size in feed forward network inside transformer
num_heads = 4  # Number of attention heads
dropout_rate = 0.2  # Dropout rate
head_size = 64  # Attention head size

# Model building
inputs = Input(shape=(look_back, 1))
x = inputs

# Transformer layers
x = transformer_encoder(x, head_size, num_heads, ff_dim, dropout_rate)

# Global Pooling and Output
x = GlobalAveragePooling1D(data_format="channels_first")(x)
x = Dropout(dropout_rate)(x)
x = Dense(50, activation='relu', kernel_regularizer=l2(l2_reg))(x)
x = Dense(1, activation='relu', kernel_regularizer=l2(l2_reg))(x)



# Build the model
transformer = tf.keras.Model(inputs=inputs, outputs=x)

network_training(transformer, "Transformer")

Epoch 1/500

1/3 [=========>....................] - ETA: 1s - loss: 0.1022


3/3 [==============================] - 1s 66ms/step - loss: 0.1194 - val_loss: 0.3215 - lr: 0.0010

Epoch 2/500

1/3 [=========>....................] - ETA: 0s - loss: 0.1180


3/3 [==============================] - 0s 16ms/step - loss: 0.1187 - val_loss: 0.3209 - lr: 0.0010

Epoch 3/500

1/3 [=========>....................] - ETA: 0s - loss: 0.1222


3/3 [==============================] - 0s 18ms/step - loss: 0.1181 - val_loss: 0.3203 - lr: 0.0010

Epoch 4/500

1/3 [=========>....................] - ETA: 0s - loss: 0.1199


3/3 [==============================] - 0s 23ms/step - loss: 0.1175 - val_loss: 0.3198 - lr: 0.0010

Epoch 5/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0971


3/3 [==============================] - 0s 13ms/step - loss: 0.1139 - val_loss: 0.3193 - lr: 0.0010

Epoch 6/500

1/3 [=========>....................] - ETA: 0s - loss: 0.1468


3/3 [==============================] - 0s 12ms/step - loss: 0.1049 - val_loss: 0.2613 - lr: 0.0010

Epoch 7/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0972


3/3 [==============================] - 0s 15ms/step - loss: 0.0887 - val_loss: 0.1303 - lr: 0.0010

Epoch 8/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0670


3/3 [==============================] - 0s 12ms/step - loss: 0.0851 - val_loss: 0.0749 - lr: 0.0010

Epoch 9/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0711


3/3 [==============================] - 0s 13ms/step - loss: 0.0716 - val_loss: 0.0852 - lr: 0.0010

Epoch 10/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0930


3/3 [==============================] - 0s 13ms/step - loss: 0.0745 - val_loss: 0.1157 - lr: 0.0010

Epoch 11/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0743


3/3 [==============================] - 0s 13ms/step - loss: 0.0709 - val_loss: 0.1216 - lr: 0.0010

Epoch 12/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0462


3/3 [==============================] - 0s 14ms/step - loss: 0.0561 - val_loss: 0.1062 - lr: 0.0010

Epoch 13/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0747


3/3 [==============================] - 0s 16ms/step - loss: 0.0668 - val_loss: 0.0745 - lr: 0.0010

Epoch 14/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0475


3/3 [==============================] - 0s 14ms/step - loss: 0.0468 - val_loss: 0.0451 - lr: 0.0010

Epoch 15/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0594


3/3 [==============================] - 0s 15ms/step - loss: 0.0544 - val_loss: 0.0318 - lr: 0.0010

Epoch 16/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0668


3/3 [==============================] - 0s 14ms/step - loss: 0.0496 - val_loss: 0.0389 - lr: 0.0010

Epoch 17/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0299


3/3 [==============================] - 0s 14ms/step - loss: 0.0391 - val_loss: 0.0405 - lr: 0.0010

Epoch 18/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0350


3/3 [==============================] - 0s 14ms/step - loss: 0.0352 - val_loss: 0.0290 - lr: 0.0010

Epoch 19/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0370


3/3 [==============================] - 0s 13ms/step - loss: 0.0376 - val_loss: 0.0269 - lr: 0.0010

Epoch 20/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0416


3/3 [==============================] - 0s 14ms/step - loss: 0.0315 - val_loss: 0.0271 - lr: 0.0010

Epoch 21/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0446


3/3 [==============================] - 0s 14ms/step - loss: 0.0376 - val_loss: 0.0274 - lr: 0.0010

Epoch 22/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0342


3/3 [==============================] - 0s 16ms/step - loss: 0.0310 - val_loss: 0.0273 - lr: 0.0010

Epoch 23/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0303


3/3 [==============================] - 0s 13ms/step - loss: 0.0294 - val_loss: 0.0266 - lr: 0.0010

Epoch 24/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0277


3/3 [==============================] - 0s 13ms/step - loss: 0.0279 - val_loss: 0.0273 - lr: 0.0010

Epoch 25/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0266


3/3 [==============================] - 0s 13ms/step - loss: 0.0283 - val_loss: 0.0259 - lr: 0.0010

Epoch 26/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0246


3/3 [==============================] - 0s 13ms/step - loss: 0.0297 - val_loss: 0.0258 - lr: 0.0010

Epoch 27/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0298


3/3 [==============================] - 0s 14ms/step - loss: 0.0269 - val_loss: 0.0256 - lr: 0.0010

Epoch 28/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0356


3/3 [==============================] - 0s 14ms/step - loss: 0.0307 - val_loss: 0.0266 - lr: 0.0010

Epoch 29/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0302


3/3 [==============================] - 0s 13ms/step - loss: 0.0270 - val_loss: 0.0281 - lr: 0.0010

Epoch 30/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0244


3/3 [==============================] - 0s 13ms/step - loss: 0.0291 - val_loss: 0.0278 - lr: 0.0010

Epoch 31/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0329


3/3 [==============================] - 0s 13ms/step - loss: 0.0289 - val_loss: 0.0254 - lr: 0.0010

Epoch 32/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0237


3/3 [==============================] - 0s 13ms/step - loss: 0.0238 - val_loss: 0.0278 - lr: 0.0010

Epoch 33/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0242


3/3 [==============================] - 0s 13ms/step - loss: 0.0235 - val_loss: 0.0258 - lr: 0.0010

Epoch 34/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0283


3/3 [==============================] - 0s 14ms/step - loss: 0.0235 - val_loss: 0.0241 - lr: 0.0010

Epoch 35/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0264


3/3 [==============================] - 0s 13ms/step - loss: 0.0228 - val_loss: 0.0237 - lr: 0.0010

Epoch 36/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0282


3/3 [==============================] - 0s 14ms/step - loss: 0.0234 - val_loss: 0.0251 - lr: 0.0010

Epoch 37/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0269


3/3 [==============================] - 0s 15ms/step - loss: 0.0224 - val_loss: 0.0249 - lr: 0.0010

Epoch 38/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0232


3/3 [==============================] - 0s 12ms/step - loss: 0.0240 - val_loss: 0.0250 - lr: 0.0010

Epoch 39/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0277


3/3 [==============================] - 0s 12ms/step - loss: 0.0225 - val_loss: 0.0249 - lr: 0.0010

Epoch 40/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0220


3/3 [==============================] - 0s 12ms/step - loss: 0.0248 - val_loss: 0.0269 - lr: 0.0010

Epoch 41/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0231


3/3 [==============================] - 0s 12ms/step - loss: 0.0201 - val_loss: 0.0280 - lr: 0.0010

Epoch 42/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0188


3/3 [==============================] - 0s 12ms/step - loss: 0.0198 - val_loss: 0.0267 - lr: 0.0010

Epoch 43/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0211


3/3 [==============================] - 0s 16ms/step - loss: 0.0206 - val_loss: 0.0238 - lr: 0.0010

Epoch 44/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0209


3/3 [==============================] - 0s 16ms/step - loss: 0.0225 - val_loss: 0.0241 - lr: 0.0010

Epoch 45/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0221

Epoch 45: ReduceLROnPlateau reducing learning rate to 0.00010000000474974513.


3/3 [==============================] - 0s 14ms/step - loss: 0.0203 - val_loss: 0.0263 - lr: 0.0010

Epoch 46/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0220


3/3 [==============================] - 0s 14ms/step - loss: 0.0195 - val_loss: 0.0266 - lr: 1.0000e-04

Epoch 47/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0196


3/3 [==============================] - 0s 12ms/step - loss: 0.0216 - val_loss: 0.0268 - lr: 1.0000e-04

Epoch 48/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0208


3/3 [==============================] - 0s 14ms/step - loss: 0.0207 - val_loss: 0.0265 - lr: 1.0000e-04

Epoch 49/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0283


3/3 [==============================] - 0s 14ms/step - loss: 0.0216 - val_loss: 0.0259 - lr: 1.0000e-04

Epoch 50/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0165


3/3 [==============================] - 0s 11ms/step - loss: 0.0211 - val_loss: 0.0254 - lr: 1.0000e-04

Epoch 51/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0216


3/3 [==============================] - 0s 11ms/step - loss: 0.0211 - val_loss: 0.0249 - lr: 1.0000e-04

Epoch 52/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0241


3/3 [==============================] - 0s 16ms/step - loss: 0.0214 - val_loss: 0.0244 - lr: 1.0000e-04

Epoch 53/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0215


3/3 [==============================] - 0s 12ms/step - loss: 0.0226 - val_loss: 0.0244 - lr: 1.0000e-04

Epoch 54/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0184


3/3 [==============================] - 0s 12ms/step - loss: 0.0201 - val_loss: 0.0244 - lr: 1.0000e-04

Epoch 55/500

1/3 [=========>....................] - ETA: 0s - loss: 0.0186

Epoch 55: ReduceLROnPlateau reducing learning rate to 1.0000000474974514e-05.


3/3 [==============================] - 0s 15ms/step - loss: 0.0218 - val_loss: 0.0245 - lr: 1.0000e-04

Epoch 55: early stopping
../_images/fc8fb18d8ca8be473f61fe8950511bdd42973f4c3a8a020edce478a09afcd7cf.png

Non-Rolling Prediction#

  non_rolling_prediction(transformer, scaler)

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 75ms/step
../_images/8d82e19f3d0751082d61dda4160506be069b2f10434796a946448849f342d5f2.png

Rolling Prediction#

rolling_prediction(transformer, scaler)

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 13ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 11ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 11ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 11ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 11ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 11ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 11ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 11ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 12ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 11ms/step

1/1 [==============================] - ETA: 0s


1/1 [==============================] - 0s 16ms/step

No artists with labels found to put in legend.  Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
../_images/59612c8236498e16dc91c5a2b751ffa3cdbca84bd058818eb88d7eed790d52d9.png
