Data Preprocessing III

Data Preprocessing III#

This tutorial contains Python examples for data transformation, focusing on techniques for sampling and data compression. Follow the step-by-step instructions below carefully. To execute the code, click on the corresponding cell and press the SHIFT+ENTER keys simultaneously.

Importing Libraries and Configuration#

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
import pywt
from sklearn import datasets
%matplotlib inline
from matplotlib.pylab import rcParams

Settings#

# Set the default figure size for matplotlib plots to 15 inches wide by 6 inches tall
rcParams["figure.figsize"] = (15, 6)

# Increase the default font size of the titles in matplotlib plots to extra-extra-large
rcParams["axes.titlesize"] = "xx-large"

# Make the titles of axes in matplotlib plots bold for better visibility
rcParams["axes.titleweight"] = "bold"

# Set the default location of the legend in matplotlib plots to the upper left corner
rcParams["legend.loc"] = "upper left"

# Configure pandas to display all columns of a DataFrame when printed to the console
pd.set_option('display.max_columns', None)

# Configure pandas to display all rows of a DataFrame when printed to the console
pd.set_option('display.max_rows', None)

Sampling#

Sampling plays a crucial role in both data reduction for exploratory analysis and scaling algorithms for big data applications, as well as in quantifying uncertainties stemming from diverse data distributions. There are several methods for sampling data, including sampling without replacement, where each chosen instance is removed from the dataset, preventing its reselection, and sampling with replacement, which allows each chosen instance to remain in the dataset, permitting its multiple selections within the sample.

In the upcoming example, we will demonstrate both sampling with and without replacement using the house_prices dataset.

data = datasets.fetch_openml(name="house_prices", as_frame=True)
df = pd.DataFrame(data=data.data, columns=data.feature_names)
df['MedHouseVal'] = data.target
print('Number of samples = %d' % (df.shape[0]))
print('Number of attributes = %d' % (df.shape[1]))
display (df.head(n=10))

Number of samples = 1460
Number of attributes = 81

/opt/conda/lib/python3.11/site-packages/sklearn/datasets/_openml.py:1022: FutureWarning: The default value of `parser` will change from `'liac-arff'` to `'auto'` in 1.4. You can set `parser='auto'` to silence this warning. Therefore, an `ImportError` will be raised from 1.4 if the dataset is dense and pandas is not installed. Note that the pandas parser may return different data types. See the Notes Section in fetch_openml's API doc for details.
  warn(
Id MSSubClass MSZoning LotFrontage LotArea Street Alley LotShape LandContour Utilities LotConfig LandSlope Neighborhood Condition1 Condition2 BldgType HouseStyle OverallQual OverallCond YearBuilt YearRemodAdd RoofStyle RoofMatl Exterior1st Exterior2nd MasVnrType MasVnrArea ExterQual ExterCond Foundation BsmtQual BsmtCond BsmtExposure BsmtFinType1 BsmtFinSF1 BsmtFinType2 BsmtFinSF2 BsmtUnfSF TotalBsmtSF Heating HeatingQC CentralAir Electrical 1stFlrSF 2ndFlrSF LowQualFinSF GrLivArea BsmtFullBath BsmtHalfBath FullBath HalfBath BedroomAbvGr KitchenAbvGr KitchenQual TotRmsAbvGrd Functional Fireplaces FireplaceQu GarageType GarageYrBlt GarageFinish GarageCars GarageArea GarageQual GarageCond PavedDrive WoodDeckSF OpenPorchSF EnclosedPorch 3SsnPorch ScreenPorch PoolArea PoolQC Fence MiscFeature MiscVal MoSold YrSold SaleType SaleCondition MedHouseVal
0 1 60 RL 65.0 8450 Pave NaN Reg Lvl AllPub Inside Gtl CollgCr Norm Norm 1Fam 2Story 7 5 2003 2003 Gable CompShg VinylSd VinylSd BrkFace 196.0 Gd TA PConc Gd TA No GLQ 706 Unf 0 150 856 GasA Ex Y SBrkr 856 854 0 1710 1 0 2 1 3 1 Gd 8 Typ 0 NaN Attchd 2003.0 RFn 2 548 TA TA Y 0 61 0 0 0 0 NaN NaN NaN 0 2 2008 WD Normal 208500
1 2 20 RL 80.0 9600 Pave NaN Reg Lvl AllPub FR2 Gtl Veenker Feedr Norm 1Fam 1Story 6 8 1976 1976 Gable CompShg MetalSd MetalSd None 0.0 TA TA CBlock Gd TA Gd ALQ 978 Unf 0 284 1262 GasA Ex Y SBrkr 1262 0 0 1262 0 1 2 0 3 1 TA 6 Typ 1 TA Attchd 1976.0 RFn 2 460 TA TA Y 298 0 0 0 0 0 NaN NaN NaN 0 5 2007 WD Normal 181500
2 3 60 RL 68.0 11250 Pave NaN IR1 Lvl AllPub Inside Gtl CollgCr Norm Norm 1Fam 2Story 7 5 2001 2002 Gable CompShg VinylSd VinylSd BrkFace 162.0 Gd TA PConc Gd TA Mn GLQ 486 Unf 0 434 920 GasA Ex Y SBrkr 920 866 0 1786 1 0 2 1 3 1 Gd 6 Typ 1 TA Attchd 2001.0 RFn 2 608 TA TA Y 0 42 0 0 0 0 NaN NaN NaN 0 9 2008 WD Normal 223500
3 4 70 RL 60.0 9550 Pave NaN IR1 Lvl AllPub Corner Gtl Crawfor Norm Norm 1Fam 2Story 7 5 1915 1970 Gable CompShg Wd Sdng Wd Shng None 0.0 TA TA BrkTil TA Gd No ALQ 216 Unf 0 540 756 GasA Gd Y SBrkr 961 756 0 1717 1 0 1 0 3 1 Gd 7 Typ 1 Gd Detchd 1998.0 Unf 3 642 TA TA Y 0 35 272 0 0 0 NaN NaN NaN 0 2 2006 WD Abnorml 140000
4 5 60 RL 84.0 14260 Pave NaN IR1 Lvl AllPub FR2 Gtl NoRidge Norm Norm 1Fam 2Story 8 5 2000 2000 Gable CompShg VinylSd VinylSd BrkFace 350.0 Gd TA PConc Gd TA Av GLQ 655 Unf 0 490 1145 GasA Ex Y SBrkr 1145 1053 0 2198 1 0 2 1 4 1 Gd 9 Typ 1 TA Attchd 2000.0 RFn 3 836 TA TA Y 192 84 0 0 0 0 NaN NaN NaN 0 12 2008 WD Normal 250000
5 6 50 RL 85.0 14115 Pave NaN IR1 Lvl AllPub Inside Gtl Mitchel Norm Norm 1Fam 1.5Fin 5 5 1993 1995 Gable CompShg VinylSd VinylSd None 0.0 TA TA Wood Gd TA No GLQ 732 Unf 0 64 796 GasA Ex Y SBrkr 796 566 0 1362 1 0 1 1 1 1 TA 5 Typ 0 NaN Attchd 1993.0 Unf 2 480 TA TA Y 40 30 0 320 0 0 NaN MnPrv Shed 700 10 2009 WD Normal 143000
6 7 20 RL 75.0 10084 Pave NaN Reg Lvl AllPub Inside Gtl Somerst Norm Norm 1Fam 1Story 8 5 2004 2005 Gable CompShg VinylSd VinylSd Stone 186.0 Gd TA PConc Ex TA Av GLQ 1369 Unf 0 317 1686 GasA Ex Y SBrkr 1694 0 0 1694 1 0 2 0 3 1 Gd 7 Typ 1 Gd Attchd 2004.0 RFn 2 636 TA TA Y 255 57 0 0 0 0 NaN NaN NaN 0 8 2007 WD Normal 307000
7 8 60 RL NaN 10382 Pave NaN IR1 Lvl AllPub Corner Gtl NWAmes PosN Norm 1Fam 2Story 7 6 1973 1973 Gable CompShg HdBoard HdBoard Stone 240.0 TA TA CBlock Gd TA Mn ALQ 859 BLQ 32 216 1107 GasA Ex Y SBrkr 1107 983 0 2090 1 0 2 1 3 1 TA 7 Typ 2 TA Attchd 1973.0 RFn 2 484 TA TA Y 235 204 228 0 0 0 NaN NaN Shed 350 11 2009 WD Normal 200000
8 9 50 RM 51.0 6120 Pave NaN Reg Lvl AllPub Inside Gtl OldTown Artery Norm 1Fam 1.5Fin 7 5 1931 1950 Gable CompShg BrkFace Wd Shng None 0.0 TA TA BrkTil TA TA No Unf 0 Unf 0 952 952 GasA Gd Y FuseF 1022 752 0 1774 0 0 2 0 2 2 TA 8 Min1 2 TA Detchd 1931.0 Unf 2 468 Fa TA Y 90 0 205 0 0 0 NaN NaN NaN 0 4 2008 WD Abnorml 129900
9 10 190 RL 50.0 7420 Pave NaN Reg Lvl AllPub Corner Gtl BrkSide Artery Artery 2fmCon 1.5Unf 5 6 1939 1950 Gable CompShg MetalSd MetalSd None 0.0 TA TA BrkTil TA TA No GLQ 851 Unf 0 140 991 GasA Ex Y SBrkr 1077 0 0 1077 1 0 1 0 2 2 TA 5 Typ 2 TA Attchd 1939.0 RFn 1 205 Gd TA Y 0 4 0 0 0 0 NaN NaN NaN 0 1 2008 WD Normal 118000

In the following code, a sample of size 3 is randomly selected (without replacement) from the original data.

sample = df.sample(n=3)
sample
Id MSSubClass MSZoning LotFrontage LotArea Street Alley LotShape LandContour Utilities LotConfig LandSlope Neighborhood Condition1 Condition2 BldgType HouseStyle OverallQual OverallCond YearBuilt YearRemodAdd RoofStyle RoofMatl Exterior1st Exterior2nd MasVnrType MasVnrArea ExterQual ExterCond Foundation BsmtQual BsmtCond BsmtExposure BsmtFinType1 BsmtFinSF1 BsmtFinType2 BsmtFinSF2 BsmtUnfSF TotalBsmtSF Heating HeatingQC CentralAir Electrical 1stFlrSF 2ndFlrSF LowQualFinSF GrLivArea BsmtFullBath BsmtHalfBath FullBath HalfBath BedroomAbvGr KitchenAbvGr KitchenQual TotRmsAbvGrd Functional Fireplaces FireplaceQu GarageType GarageYrBlt GarageFinish GarageCars GarageArea GarageQual GarageCond PavedDrive WoodDeckSF OpenPorchSF EnclosedPorch 3SsnPorch ScreenPorch PoolArea PoolQC Fence MiscFeature MiscVal MoSold YrSold SaleType SaleCondition MedHouseVal
1173 1174 50 RL 138.0 18030 Pave NaN IR1 Bnk AllPub Inside Gtl ClearCr Norm Norm 1Fam 1.5Fin 5 6 1946 1994 Gable CompShg MetalSd MetalSd None 0.0 TA TA CBlock TA TA No Rec 152 BLQ 469 977 1598 GasA TA Y SBrkr 1636 971 479 3086 0 0 3 0 3 1 Ex 12 Maj1 1 Gd NaN NaN NaN 0 0 NaN NaN Y 122 0 0 0 0 0 NaN MnPrv NaN 0 3 2007 WD Normal 200500
994 995 20 RL 96.0 12456 Pave NaN Reg Lvl AllPub FR2 Gtl NridgHt Norm Norm 1Fam 1Story 10 5 2006 2007 Hip CompShg CemntBd CmentBd Stone 230.0 Ex TA PConc Ex TA Gd GLQ 1172 Unf 0 528 1700 GasA Ex Y SBrkr 1718 0 0 1718 1 0 2 0 3 1 Ex 7 Typ 1 Gd Attchd 2008.0 Fin 3 786 TA TA Y 216 48 0 0 0 0 NaN NaN NaN 0 7 2009 WD Normal 337500
324 325 80 RL 96.0 11275 Pave NaN Reg Lvl AllPub Corner Gtl NAmes PosN Norm 1Fam SLvl 7 7 1967 2007 Mansard WdShake Wd Sdng Wd Sdng BrkFace 300.0 Gd Gd CBlock Gd TA No Unf 0 Unf 0 710 710 GasA Ex Y SBrkr 1898 1080 0 2978 0 0 2 1 5 1 Gd 11 Typ 1 Gd BuiltIn 1961.0 Fin 2 564 TA TA Y 240 0 0 0 0 0 NaN NaN NaN 0 6 2010 WD Normal 242000

In the next example, we randomly select 1% of the data (without replacement) and display the selected samples. The random_state argument of the function specifies the seed value of the random number generator.

sample = df.sample(frac=0.01, random_state=1)
sample
Id MSSubClass MSZoning LotFrontage LotArea Street Alley LotShape LandContour Utilities LotConfig LandSlope Neighborhood Condition1 Condition2 BldgType HouseStyle OverallQual OverallCond YearBuilt YearRemodAdd RoofStyle RoofMatl Exterior1st Exterior2nd MasVnrType MasVnrArea ExterQual ExterCond Foundation BsmtQual BsmtCond BsmtExposure BsmtFinType1 BsmtFinSF1 BsmtFinType2 BsmtFinSF2 BsmtUnfSF TotalBsmtSF Heating HeatingQC CentralAir Electrical 1stFlrSF 2ndFlrSF LowQualFinSF GrLivArea BsmtFullBath BsmtHalfBath FullBath HalfBath BedroomAbvGr KitchenAbvGr KitchenQual TotRmsAbvGrd Functional Fireplaces FireplaceQu GarageType GarageYrBlt GarageFinish GarageCars GarageArea GarageQual GarageCond PavedDrive WoodDeckSF OpenPorchSF EnclosedPorch 3SsnPorch ScreenPorch PoolArea PoolQC Fence MiscFeature MiscVal MoSold YrSold SaleType SaleCondition MedHouseVal
258 259 60 RL 80.0 12435 Pave NaN Reg Lvl AllPub Inside Gtl CollgCr Norm Norm 1Fam 2Story 7 5 2001 2001 Gable CompShg VinylSd VinylSd BrkFace 172.0 Gd TA PConc Gd TA No GLQ 361 Unf 0 602 963 GasA Ex Y SBrkr 963 829 0 1792 0 0 2 1 3 1 Gd 7 Typ 1 TA Attchd 2001.0 RFn 2 564 TA TA Y 0 96 0 245 0 0 NaN NaN NaN 0 5 2008 WD Normal 231500
267 268 75 RL 60.0 8400 Pave NaN Reg Bnk AllPub Inside Mod SWISU Norm Norm 1Fam 2.5Fin 5 8 1939 1997 Gable CompShg Wd Sdng Wd Sdng None 0.0 TA TA PConc TA TA No LwQ 378 Unf 0 342 720 GasA Ex Y SBrkr 1052 720 420 2192 0 0 2 1 4 1 Gd 8 Typ 1 Gd Detchd 1939.0 Unf 1 240 TA TA Y 262 24 0 0 0 0 NaN NaN NaN 0 7 2008 WD Normal 179500
288 289 20 RL NaN 9819 Pave NaN IR1 Lvl AllPub Inside Gtl Sawyer Norm Norm 1Fam 1Story 5 5 1967 1967 Gable CompShg MetalSd MetalSd BrkFace 31.0 TA Gd CBlock TA TA No BLQ 450 Unf 0 432 882 GasA TA Y SBrkr 900 0 0 900 0 0 1 0 3 1 TA 5 Typ 0 NaN Detchd 1970.0 Unf 1 280 TA TA Y 0 0 0 0 0 0 NaN MnPrv NaN 0 2 2010 WD Normal 122000
649 650 180 RM 21.0 1936 Pave NaN Reg Lvl AllPub Inside Gtl MeadowV Norm Norm Twnhs SFoyer 4 6 1970 1970 Gable CompShg CemntBd CmentBd None 0.0 TA TA CBlock Gd TA Av BLQ 131 GLQ 499 0 630 GasA Gd Y SBrkr 630 0 0 630 1 0 1 0 1 1 TA 3 Typ 0 NaN NaN NaN NaN 0 0 NaN NaN Y 0 0 0 0 0 0 NaN MnPrv NaN 0 12 2007 WD Normal 84500
1233 1234 20 RL NaN 12160 Pave NaN IR1 Lvl AllPub Inside Gtl NAmes Norm Norm 1Fam 1Story 5 5 1959 1959 Hip CompShg Plywood Plywood BrkFace 180.0 TA TA CBlock TA TA No Rec 1000 Unf 0 188 1188 GasA Fa Y SBrkr 1188 0 0 1188 1 0 1 0 3 1 TA 6 Typ 0 NaN Attchd 1959.0 RFn 2 531 TA TA Y 0 0 0 0 0 0 NaN MnPrv NaN 0 5 2010 COD Abnorml 142000
167 168 60 RL 86.0 10562 Pave NaN Reg Lvl AllPub Inside Gtl NridgHt Norm Norm 1Fam 2Story 8 5 2007 2007 Gable CompShg VinylSd VinylSd Stone 300.0 Gd TA PConc Ex TA No GLQ 1288 Unf 0 294 1582 GasA Ex Y SBrkr 1610 551 0 2161 1 0 1 1 3 1 Ex 8 Typ 1 Gd Attchd 2007.0 Fin 3 789 TA TA Y 178 120 0 0 0 0 NaN NaN NaN 0 11 2007 New Partial 325624
926 927 60 RL 93.0 11999 Pave NaN Reg Lvl AllPub Inside Gtl NridgHt Norm Norm 1Fam 2Story 8 5 2003 2004 Hip CompShg VinylSd VinylSd BrkFace 340.0 Gd TA PConc Gd TA No Unf 0 Unf 0 1181 1181 GasA Ex Y SBrkr 1234 1140 0 2374 0 0 2 1 4 1 Ex 10 Typ 1 Gd BuiltIn 2003.0 Fin 3 656 TA TA Y 104 100 0 0 0 0 NaN NaN NaN 0 5 2007 WD Normal 285000
831 832 160 FV 30.0 3180 Pave Pave Reg Lvl AllPub Inside Gtl Somerst Norm Norm TwnhsE 2Story 7 5 2005 2005 Gable CompShg MetalSd MetalSd None 0.0 TA TA PConc Gd TA No Unf 0 Unf 0 600 600 GasA Ex Y SBrkr 520 600 80 1200 0 0 2 1 2 1 Gd 4 Typ 0 NaN Detchd 2005.0 RFn 2 480 TA TA Y 0 166 0 0 0 0 NaN NaN NaN 0 6 2006 WD Normal 151000
1237 1238 60 RL 41.0 12393 Pave NaN IR2 Lvl AllPub FR2 Gtl CollgCr Norm Norm 1Fam 2Story 7 5 2004 2005 Gable CompShg VinylSd VinylSd None 0.0 Gd TA PConc Gd TA No Unf 0 Unf 0 847 847 GasA Ex Y SBrkr 847 1101 0 1948 0 0 2 1 4 1 Gd 8 Typ 1 Gd BuiltIn 2004.0 Fin 2 434 TA TA Y 100 48 0 0 0 0 NaN NaN NaN 0 9 2006 WD Normal 195000
426 427 80 RL NaN 12800 Pave NaN Reg Low AllPub Inside Mod SawyerW Norm Norm 1Fam SLvl 7 5 1989 1989 Gable CompShg Wd Sdng Wd Sdng BrkFace 145.0 Gd TA PConc Gd TA Gd GLQ 1518 Unf 0 0 1518 GasA Gd Y SBrkr 1644 0 0 1644 1 1 2 0 2 1 Gd 5 Typ 1 TA Attchd 1989.0 Fin 2 569 TA TA Y 80 0 0 0 396 0 NaN NaN NaN 0 8 2009 WD Normal 275000
487 488 20 RL 70.0 12243 Pave NaN IR1 Lvl AllPub Inside Gtl NWAmes Norm Norm 1Fam 1Story 5 6 1971 1971 Gable CompShg Plywood Plywood None 0.0 TA TA CBlock Gd TA Av ALQ 998 Unf 0 486 1484 GasA Gd Y SBrkr 1484 0 0 1484 0 0 2 0 3 1 TA 7 Typ 1 TA Attchd 1971.0 Unf 2 487 TA TA Y 224 0 0 0 180 0 NaN NaN NaN 0 2 2007 WD Normal 175000
375 376 30 RL NaN 10020 Pave NaN IR1 Low AllPub Inside Sev Edwards Norm Norm 1Fam 1Story 1 1 1922 1950 Gable CompShg Wd Sdng Wd Sdng None 0.0 Fa Fa BrkTil Fa Po Gd BLQ 350 Unf 0 333 683 GasA Gd N FuseA 904 0 0 904 1 0 0 1 1 1 Fa 4 Maj1 0 NaN NaN NaN NaN 0 0 NaN NaN Y 0 0 0 0 0 0 NaN NaN NaN 0 3 2009 WD Normal 61000
1126 1127 120 RL 53.0 3684 Pave NaN Reg Lvl AllPub Inside Gtl Blmngtn Norm Norm TwnhsE 1Story 7 5 2007 2007 Hip CompShg VinylSd VinylSd BrkFace 130.0 Gd TA PConc Gd TA No Unf 0 Unf 0 1373 1373 GasA Ex Y SBrkr 1555 0 0 1555 0 0 2 0 2 1 Gd 7 Typ 1 TA Attchd 2007.0 Fin 3 660 TA TA Y 143 20 0 0 0 0 NaN NaN NaN 0 6 2009 WD Normal 174000
53 54 20 RL 68.0 50271 Pave NaN IR1 Low AllPub Inside Gtl Veenker Norm Norm 1Fam 1Story 9 5 1981 1987 Gable WdShngl WdShing Wd Shng None 0.0 Gd TA CBlock Ex TA Gd GLQ 1810 Unf 0 32 1842 GasA Gd Y SBrkr 1842 0 0 1842 2 0 0 1 0 1 Gd 5 Typ 1 Gd Attchd 1981.0 Fin 3 894 TA TA Y 857 72 0 0 0 0 NaN NaN NaN 0 11 2006 WD Normal 385000
1033 1034 20 RL NaN 8125 Pave NaN Reg Lvl AllPub Inside Gtl CollgCr Norm Norm 1Fam 1Story 7 5 2002 2002 Gable CompShg VinylSd VinylSd Stone 295.0 Gd TA PConc Gd TA No GLQ 986 Unf 0 668 1654 GasA Ex Y SBrkr 1654 0 0 1654 1 0 2 0 3 1 Gd 6 Typ 0 NaN Attchd 2002.0 Unf 3 900 TA TA Y 0 136 0 0 0 0 NaN NaN NaN 0 2 2006 WD Normal 230000

Finally, we perform a sampling with replacement to create a sample whose size is equal to 1% of the entire data. You should be able to observe duplicate instances in the sample by increasing the sample size.

sample = df.sample(frac=0.01, replace=True, random_state=1)
sample
Id MSSubClass MSZoning LotFrontage LotArea Street Alley LotShape LandContour Utilities LotConfig LandSlope Neighborhood Condition1 Condition2 BldgType HouseStyle OverallQual OverallCond YearBuilt YearRemodAdd RoofStyle RoofMatl Exterior1st Exterior2nd MasVnrType MasVnrArea ExterQual ExterCond Foundation BsmtQual BsmtCond BsmtExposure BsmtFinType1 BsmtFinSF1 BsmtFinType2 BsmtFinSF2 BsmtUnfSF TotalBsmtSF Heating HeatingQC CentralAir Electrical 1stFlrSF 2ndFlrSF LowQualFinSF GrLivArea BsmtFullBath BsmtHalfBath FullBath HalfBath BedroomAbvGr KitchenAbvGr KitchenQual TotRmsAbvGrd Functional Fireplaces FireplaceQu GarageType GarageYrBlt GarageFinish GarageCars GarageArea GarageQual GarageCond PavedDrive WoodDeckSF OpenPorchSF EnclosedPorch 3SsnPorch ScreenPorch PoolArea PoolQC Fence MiscFeature MiscVal MoSold YrSold SaleType SaleCondition MedHouseVal
1061 1062 30 C (all) 120.0 18000 Grvl NaN Reg Low AllPub Inside Gtl IDOTRR Norm Norm 1Fam 1Story 3 4 1935 1950 Gable CompShg MetalSd MetalSd None 0.0 Fa TA CBlock TA TA No Unf 0 Unf 0 894 894 GasA TA Y SBrkr 894 0 0 894 0 0 1 0 2 1 TA 6 Typ 0 NaN Detchd 1994.0 RFn 3 1248 TA TA Y 0 20 0 0 0 0 NaN NaN Shed 560 8 2008 ConLD Normal 81000
235 236 160 RM 21.0 1680 Pave NaN Reg Lvl AllPub Inside Gtl BrDale Norm Norm TwnhsE 2Story 6 3 1971 1971 Gable CompShg HdBoard HdBoard BrkFace 604.0 TA TA CBlock TA TA No ALQ 358 Unf 0 125 483 GasA TA Y SBrkr 483 504 0 987 0 0 1 1 2 1 TA 5 Typ 0 NaN Detchd 1971.0 Unf 1 264 TA TA Y 0 0 0 0 0 0 NaN NaN NaN 0 8 2008 WD Normal 89500
1096 1097 70 RM 60.0 6882 Pave NaN Reg Lvl AllPub Inside Gtl IDOTRR Norm Norm 1Fam 2Story 6 7 1914 2006 Gable CompShg Wd Sdng Wd Sdng None 0.0 TA TA PConc TA TA No Unf 0 Unf 0 684 684 GasA TA Y SBrkr 773 582 0 1355 0 0 1 1 3 1 Gd 7 Typ 0 NaN NaN NaN NaN 0 0 NaN NaN Y 136 0 115 0 0 0 NaN NaN NaN 0 3 2007 WD Normal 127000
905 906 20 RL 80.0 9920 Pave NaN Reg Lvl AllPub Inside Gtl NAmes Norm Norm 1Fam 1Story 5 5 1954 1954 Gable CompShg HdBoard HdBoard Stone 110.0 TA TA CBlock TA TA No Rec 354 LwQ 290 412 1056 GasA TA Y SBrkr 1063 0 0 1063 1 0 1 0 3 1 TA 6 Typ 0 NaN Attchd 1954.0 RFn 1 280 TA TA Y 0 0 164 0 0 0 NaN MnPrv NaN 0 2 2010 WD Normal 128000
715 716 20 RL 78.0 10140 Pave NaN Reg Lvl AllPub Inside Gtl NWAmes Norm Norm 1Fam 1Story 6 5 1974 1974 Hip CompShg HdBoard HdBoard BrkFace 174.0 TA TA CBlock Gd TA No Unf 0 Unf 0 1064 1064 GasA TA Y SBrkr 1350 0 0 1350 0 0 2 0 3 1 TA 7 Typ 1 TA Attchd 1974.0 RFn 2 478 TA TA Y 0 0 0 0 0 0 NaN MnPrv NaN 0 8 2009 WD Normal 165000
847 848 20 RL 36.0 15523 Pave NaN IR1 Lvl AllPub CulDSac Gtl CollgCr Norm Norm 1Fam 1Story 5 6 1972 1972 Gable CompShg HdBoard Plywood None 0.0 TA TA CBlock TA TA Av BLQ 460 Unf 0 404 864 GasA Ex Y SBrkr 864 0 0 864 1 0 1 0 3 1 TA 5 Typ 1 Fa Attchd 1972.0 Unf 1 338 TA TA Y 0 0 0 0 0 0 NaN NaN NaN 0 8 2009 WD Normal 133500
960 961 20 RL 50.0 7207 Pave NaN IR1 Lvl AllPub Inside Gtl BrkSide Norm Norm 1Fam 1Story 5 7 1958 2008 Gable CompShg Wd Sdng Plywood None 0.0 TA Gd CBlock TA TA Gd BLQ 696 Unf 0 162 858 GasA Gd Y SBrkr 858 0 0 858 1 0 1 0 2 1 TA 4 Typ 0 NaN NaN NaN NaN 0 0 NaN NaN Y 117 0 0 0 0 0 NaN NaN NaN 0 2 2010 WD Normal 116500
144 145 90 RM 70.0 9100 Pave NaN Reg Lvl AllPub Inside Gtl Sawyer RRAe Norm Duplex 1Story 5 5 1963 1963 Gable CompShg HdBoard HdBoard BrkFace 336.0 TA TA CBlock TA TA No Rec 1332 Unf 0 396 1728 GasA TA Y SBrkr 1728 0 0 1728 1 0 2 0 6 2 TA 10 Typ 0 NaN Detchd 1963.0 Unf 2 504 TA TA Y 0 0 0 0 0 0 NaN NaN NaN 0 11 2006 ConLI Abnorml 125000
129 130 20 RL 69.0 8973 Pave NaN Reg Lvl AllPub Inside Gtl NAmes Norm Norm 1Fam 1Story 5 7 1958 1991 Gable CompShg Plywood Plywood BrkFace 85.0 TA TA CBlock TA TA No Rec 567 BLQ 28 413 1008 GasA TA Y FuseA 1053 0 0 1053 0 1 1 1 3 1 Ex 6 Typ 0 NaN 2Types 1998.0 RFn 2 750 TA TA Y 0 80 0 180 0 0 NaN MnWw NaN 0 7 2006 WD Abnorml 150000
749 750 50 RL 50.0 8405 Pave NaN Reg Lvl AllPub Inside Gtl Edwards Norm Norm 1Fam 1.5Fin 4 3 1945 1950 Gable CompShg WdShing Wd Shng None 0.0 TA TA Slab NaN NaN NaN NaN 0 NaN 0 0 0 Wall TA N FuseF 1088 441 0 1529 0 0 2 0 4 1 TA 9 Mod 0 NaN Detchd 1945.0 Unf 1 240 TA TA N 92 0 185 0 0 0 NaN NaN NaN 0 4 2009 WD Normal 98000
508 509 70 RM 60.0 9600 Pave NaN Reg Lvl AllPub Inside Gtl OldTown Norm Norm 1Fam 2Story 7 9 1928 2005 Gambrel CompShg MetalSd MetalSd None 0.0 TA Ex BrkTil TA TA No Rec 141 Unf 0 548 689 GasA Ex Y SBrkr 689 689 0 1378 0 0 2 0 3 1 Gd 7 Typ 1 Gd Detchd 1928.0 Unf 2 360 TA TA N 0 0 116 0 0 0 NaN NaN NaN 0 10 2008 WD Normal 161000
1414 1415 50 RL 64.0 13053 Pave Pave Reg Bnk AllPub Inside Gtl BrkSide Norm Norm 1Fam 1.5Fin 6 7 1923 2000 Gambrel CompShg Wd Sdng Wd Sdng None 0.0 TA TA BrkTil TA TA No Unf 0 Unf 0 833 833 GasA Gd Y SBrkr 1053 795 0 1848 0 0 1 1 4 1 Gd 8 Typ 1 Gd Detchd 1922.0 Unf 2 370 TA TA N 0 0 0 0 220 0 NaN NaN NaN 0 6 2008 WD Normal 207000
1305 1306 20 RL 108.0 13173 Pave NaN IR1 Lvl AllPub Corner Gtl NridgHt Norm Norm 1Fam 1Story 9 5 2006 2007 Hip CompShg VinylSd VinylSd Stone 300.0 Gd TA PConc Ex TA No GLQ 1572 Unf 0 80 1652 GasA Ex Y SBrkr 1652 0 0 1652 1 0 2 0 2 1 Ex 6 Typ 2 Ex Attchd 2006.0 Fin 2 840 TA TA Y 404 102 0 0 0 0 NaN NaN NaN 0 11 2009 WD Normal 325000
1202 1203 50 RM 50.0 6000 Pave NaN Reg Lvl AllPub Corner Gtl BrkSide Norm Norm 1Fam 1.5Fin 5 8 1925 1997 Gable CompShg Wd Sdng Wd Sdng None 0.0 TA TA BrkTil TA TA No Unf 0 Unf 0 884 884 GasA Ex Y SBrkr 884 464 0 1348 1 0 1 0 3 1 TA 5 Typ 1 Fa Detchd 1960.0 Unf 1 216 TA TA N 0 0 208 0 0 0 NaN NaN NaN 0 5 2009 WD Normal 117000
1300 1301 60 RL NaN 10762 Pave NaN IR1 Lvl AllPub CulDSac Gtl Gilbert Norm Norm 1Fam 2Story 7 5 1999 1999 Gable CompShg VinylSd VinylSd None 344.0 Gd TA PConc Gd TA No GLQ 694 Unf 0 284 978 GasA Ex Y SBrkr 1005 978 0 1983 0 0 2 1 3 1 Gd 9 Typ 1 TA Attchd 1999.0 Fin 2 490 TA TA Y 0 0 0 0 0 0 NaN NaN NaN 0 5 2009 WD Normal 225000

Data Compression & Noise Reduction using Haar Discrete wavelet transform (DWT)#

Load an example image and Generate a noisy image by adding Gaussian noise to the image.

from skimage.data import camera
from skimage.util import random_noise

image = camera()
noisy_image = random_noise(image, mode='gaussian', var=0.01)

Perform 2D Discrete Wavelet Transform (DWT) using the Haar wavelet to decompose an image into its constituent components:

  • cA: Approximation coefficients representing the low-frequency content of the image.

  • cH: Horizontal detail coefficients capturing edge information in the horizontal direction.

  • cV: Vertical detail coefficients capturing edge information in the vertical direction.

  • cD: Diagonal detail coefficients capturing edge information along the diagonals.

  • Data Compression: Primarily targets the “cA” component, retaining significant low-frequency information while reducing dimensionality to achieve data compression. The method selectively retains a portion of “cA” based on its importance to overall image structure.

  • Noise Reduction: Focuses on the “cH”, “cV”, and “cD” components to mitigate noise. By applying a thresholding technique, it eliminates coefficients below a certain magnitude believed to represent noise rather than true image content, thereby preserving essential edge information while reducing noise.

coeffs = pywt.dwt2(noisy_image, 'haar')
cA, (cH, cV, cD) = coeffs

# Set a threshold to zero out small coefficients in the detail bands for denoising
threshold = 0.02
cH_denoised = np.where(np.abs(cH) > threshold, cH, 0)
cV_denoised = np.where(np.abs(cV) > threshold, cV, 0)
cD_denoised = np.where(np.abs(cD) > threshold, cD, 0)

# Reconstruct the image using the modified coefficients for denoising
denoised_image = pywt.idwt2((cA, (cH_denoised, cV_denoised, cD_denoised)), 'haar')

# Image compression by keeping top 70% coefficients
n_largest = int(len(cA.flatten()) * 0.7)
largest_indices = np.argpartition(cA.flatten(), -n_largest)[-n_largest:]
compressed_cA = np.zeros_like(cA.flatten())
compressed_cA[largest_indices] = cA.flatten()[largest_indices]
compressed_cA = compressed_cA.reshape(cA.shape)

# Reconstruct the image from the compressed approximation coefficients
compressed_image = pywt.idwt2((compressed_cA, (cH_denoised, cV_denoised, cD_denoised)), 'haar')

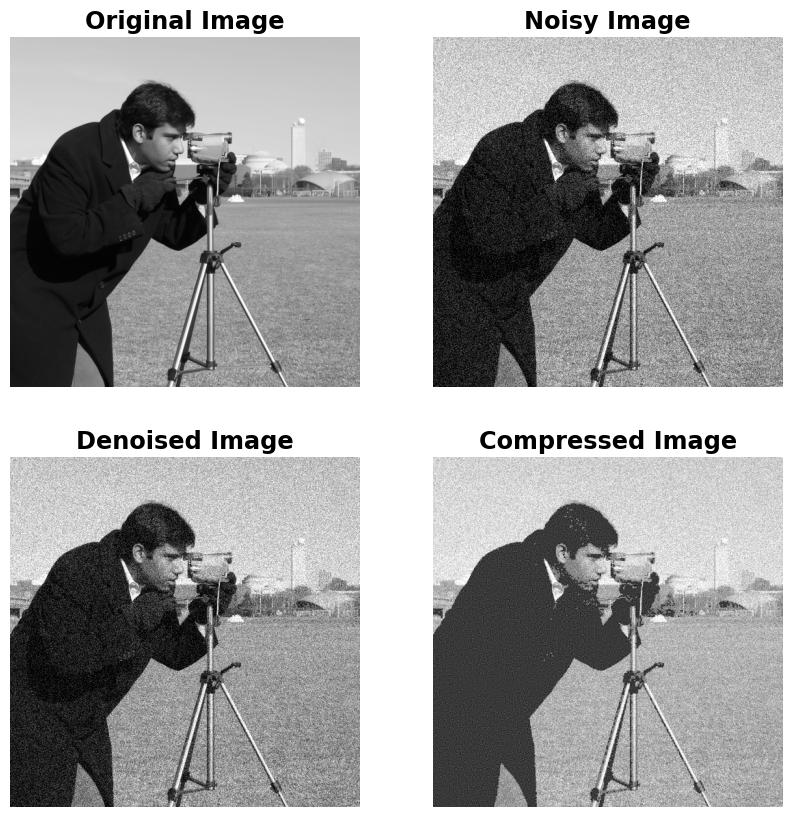

# Plot the original, noisy, denoised, and compressed images
fig, axs = plt.subplots(2, 2, figsize=(10, 10))

axs[0, 0].imshow(image, cmap='gray')
axs[0, 0].set_title('Original Image')
axs[0, 0].axis('off')

axs[0, 1].imshow(noisy_image, cmap='gray')
axs[0, 1].set_title('Noisy Image')
axs[0, 1].axis('off')

axs[1, 0].imshow(denoised_image, cmap='gray')
axs[1, 0].set_title('Denoised Image')
axs[1, 0].axis('off')

axs[1, 1].imshow(compressed_image, cmap='gray')
axs[1, 1].set_title('Compressed Image')
axs[1, 1].axis('off')

plt.show()
../_images/13556a93c0de1d0db718a876158ee8c22ff547edcefadaed71034c26e9c3f556.png
